5 Series E39 520d (M47) SAL

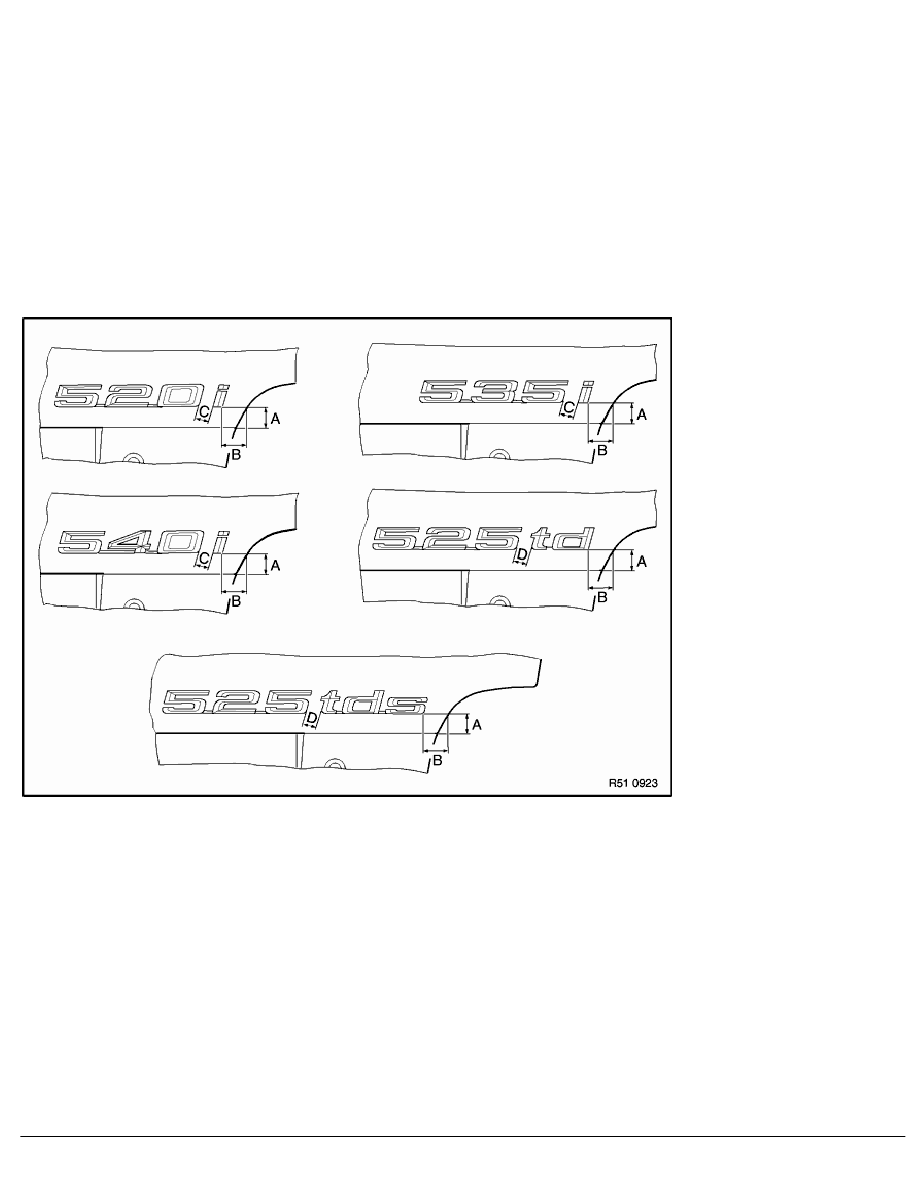

Apply adhesive tape up to upper edge "A" and mark dimensions as per table.
Dimension in mm
touring 520 i ... 540 i:
A = 23, B = 26, C = 16
touring 525 tds:
A = 23, B = 23, D = 20
RA Removing and installing / replacing rear model emblem
