5 Series E39 520d (M47) TOUR

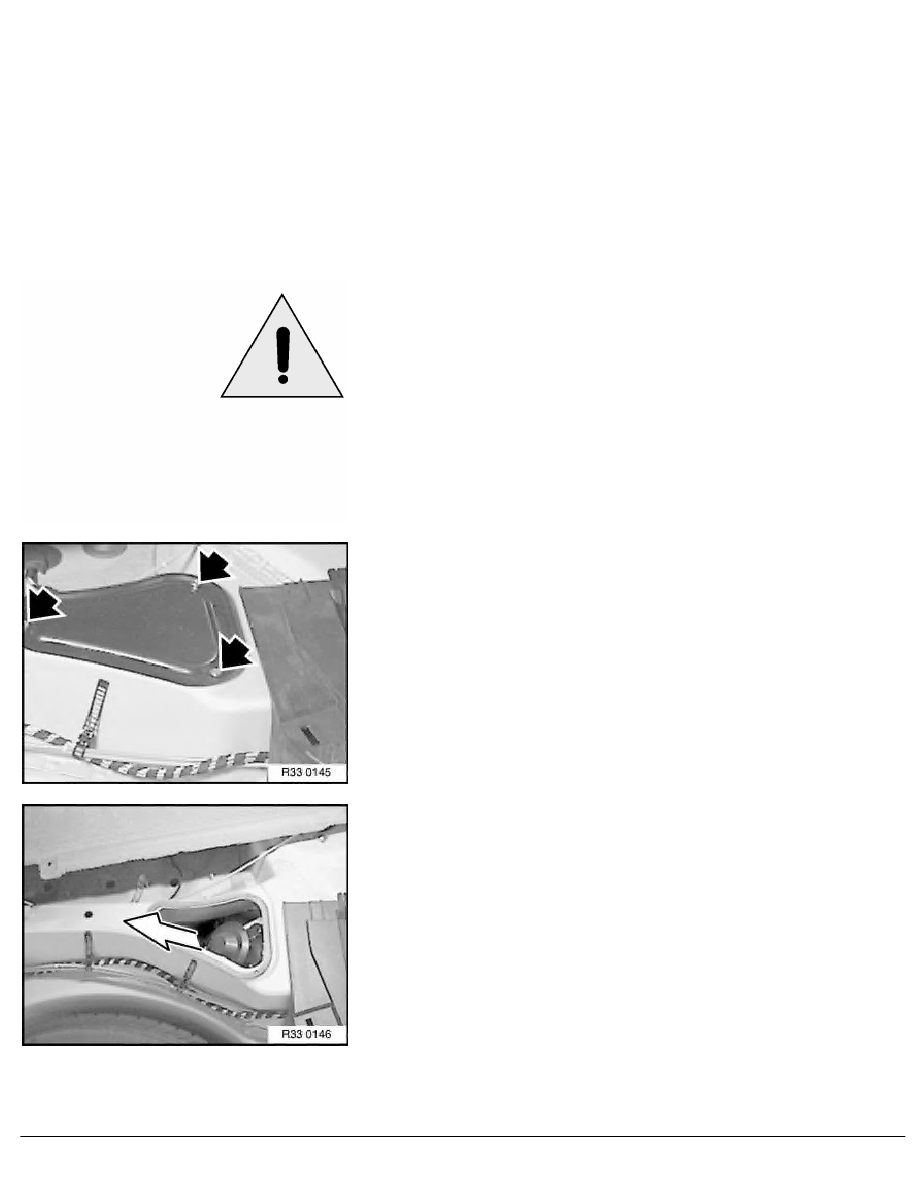

Support wheel carrier with workshop jack. The brake hose must
not be exposed to traction loads.
Unscrew nuts.
Installation:
Replace self-locking nuts. Tightening torque,
refer to Technical Data 33 52 3AZ.
Unfasten and remove shock absorber from swinging arm.
Installation:
Guide bush (1) into hole of swinging arm. Tightening torque,
refer to Technical Data 33 52 1AZ.
Brace piston rod with ring spanner and unfasten nut. Remove
thrust bearing.
Installation:
Observe installation sequence.
Refer to 33 52 ... Shock absorber layout.
Replace self-locking nut. Tightening torque,
refer to 33 52 2AZ.
RA Removing and installing / replacing rear left or right shock absorber (Touring)
