5 Series E39 520d (M47) TOUR
Loosen the screw connections of the brake lines.
Note:
Seal master brake cylinder with suitable sealing plug.
Installation:
Tightening torque,
refer to Technical Data 34 32 1AZ.

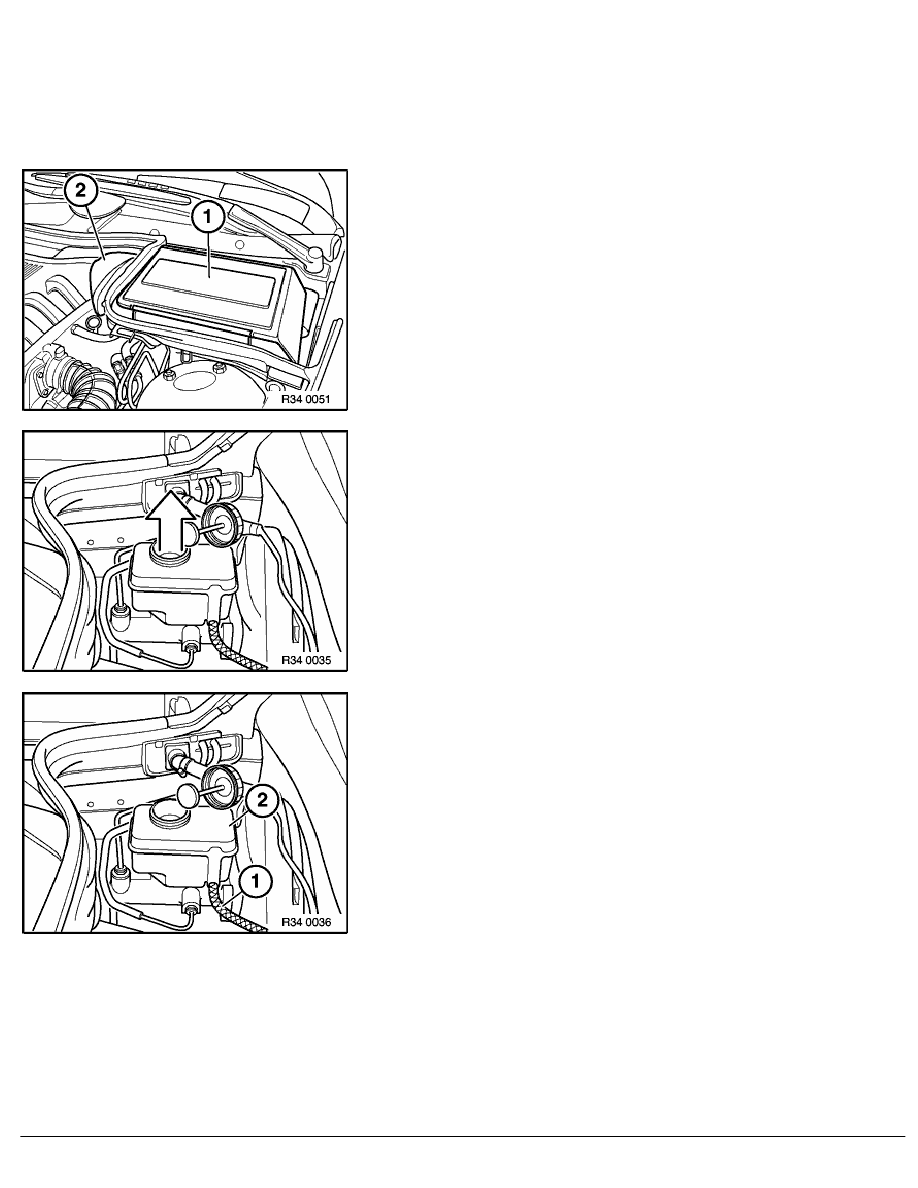

Remove cover (1) from line aperture.
Remove cover (2)
Pull the vacuum hose (3) off of the brake unit.
Disconnect brake lines (1. . . 2) from their screw connections and
remove.
Note:
Seal brake lines with suitable sealing plug.
Installation:
Tightening torque,
refer to Technical Data 34 32 1AZ.
Remove brake light switch,
refer to 61 31 310.
RA Removing and installing / replacing the brake unit
