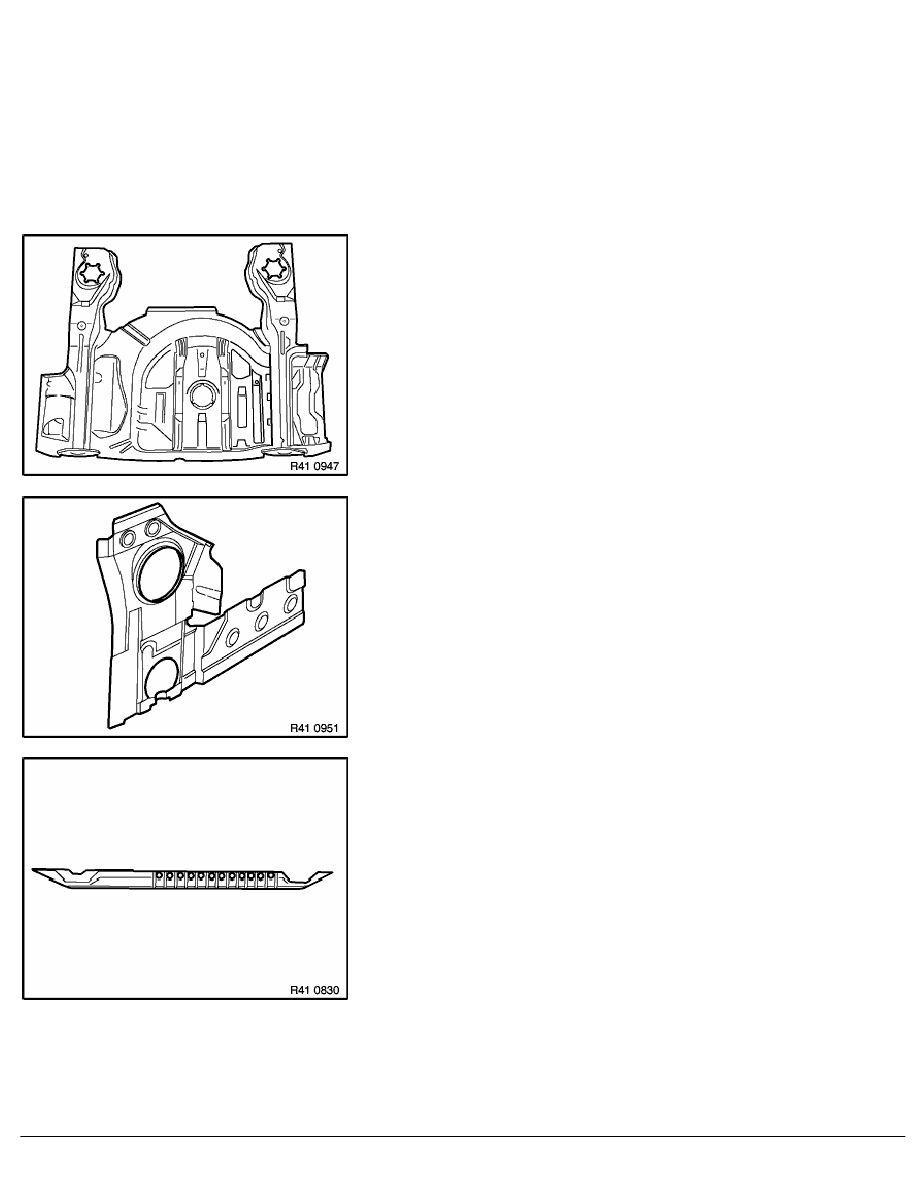

Expose and open connecting point for luggage compartment
floor/wheel housing extension and bracket, luggage compartment
floor/D-pillar, inside right.

Note:

For easier removal, realign reinforcement for rear panel, right
(1).

Expose and open connecting point for luggage compartment
floor/wheel housing, left (1).

Expose and open connecting point for support, side member, left
(2).

Expose and open connecting point for luggage compartment
floor/wheel housing, left.

Expose and open connecting point for crossmember, luggage
compartment floor, front bottom/luggage compartment floor, spare
wheel recess and side member.

RA  Replacing rear luggage compartment floor completely (rear left side wall and tai
