5 Series E39 520i (M52) TOUR

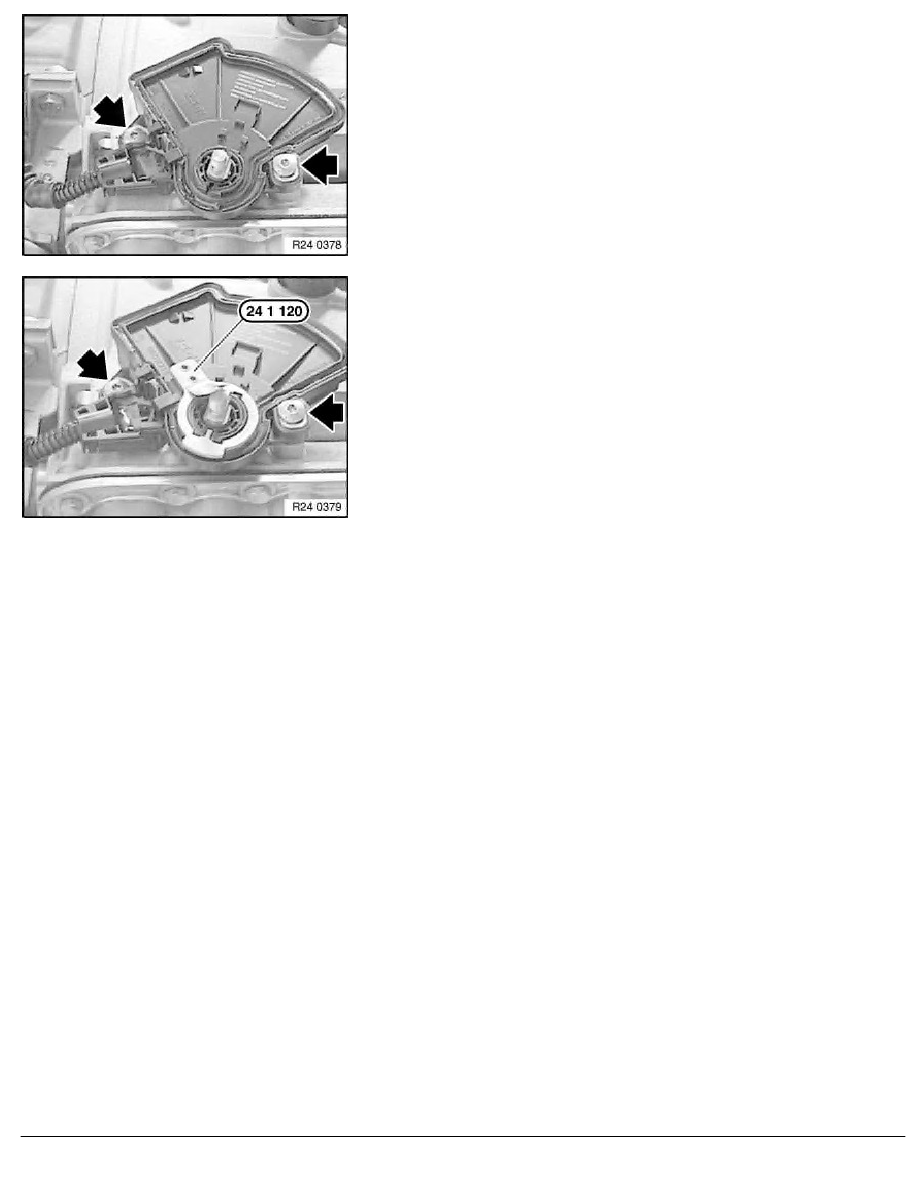

Unfasten screws and remove position switch from the manual shift
valve shaft.
Installation:
Move manual shift valve shaft into Position "P".
Fit special tool 24 1 120 to the position switch (only possible
in switch position "P").
Fit position switch to manual shift valve shaft with special tool
24 1 120 and tighten down.
Tightening torque,
refer to Technical Data 24 15 1AZ.
Remove special tool 24 1 120 from position switch.
RA Removing and installing / replacing position switch (A4S 270R/310R)
