5 Series E39 520i (M52) TOUR

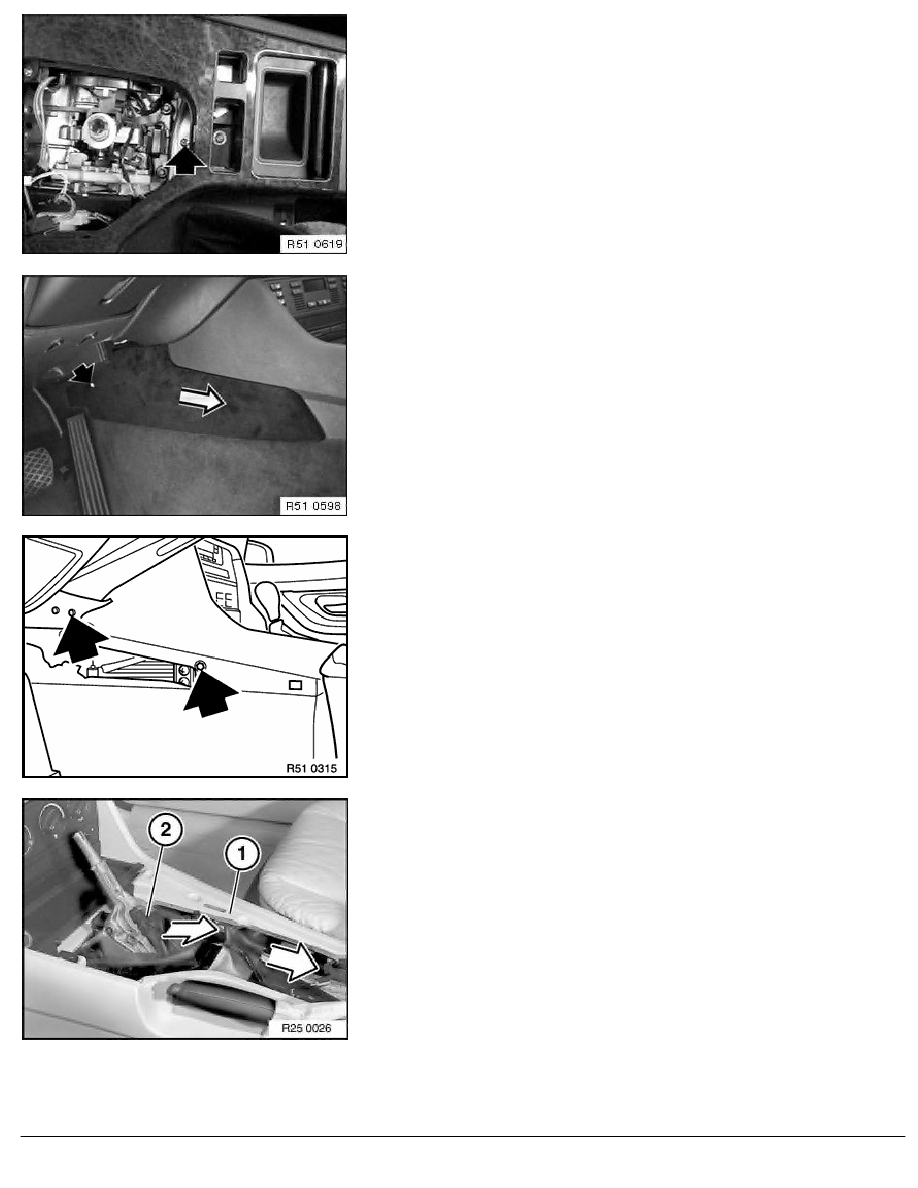

Unscrew screw.
Remove left and right trim (1):
Unfasten screw and pull trim (1) backwards to remove.
Unscrew left and right bolts.
Slide oddments tray (1) approx. 20 mm backwards and remove
shift tower (2).
RA Removing and installing/replacing shift tower
