5 Series E39 520i (M52) TOUR

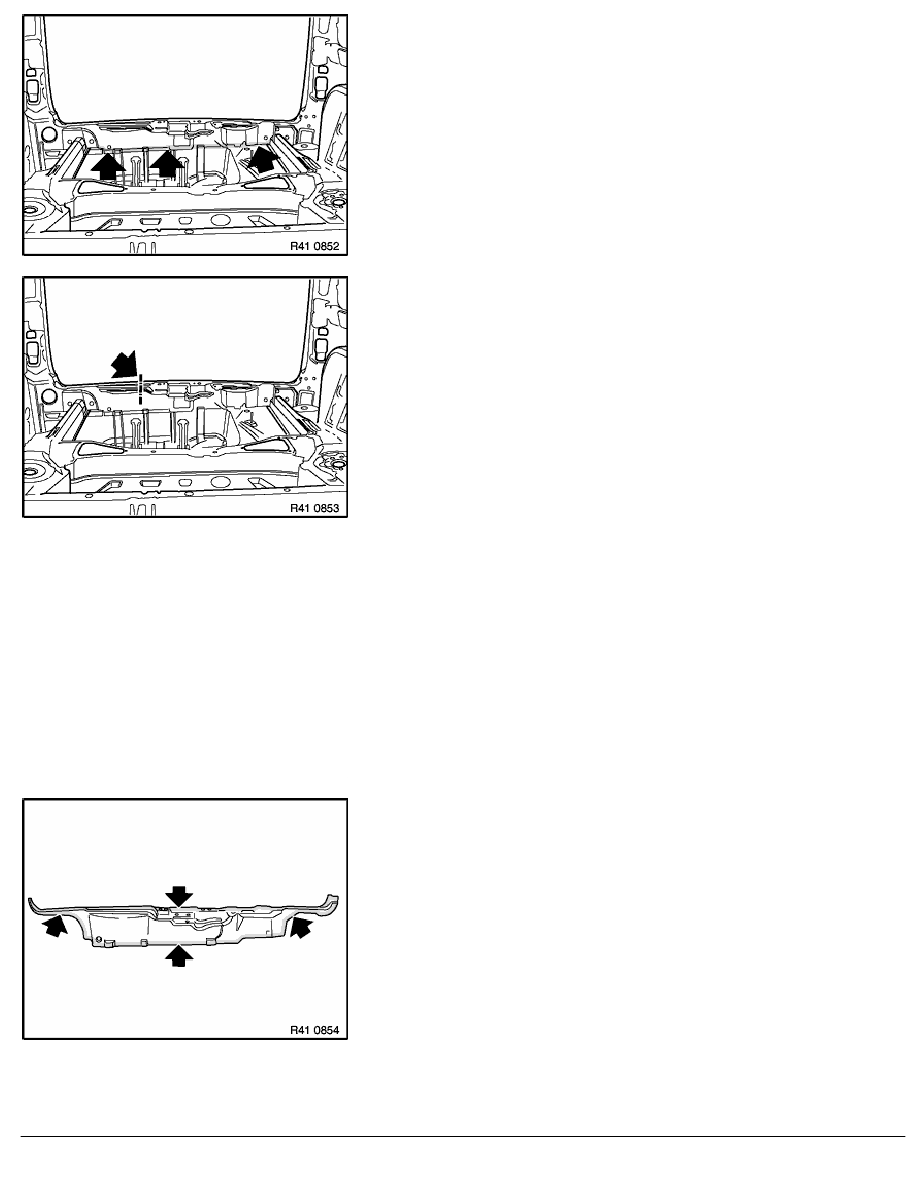

Drill out welding spots on connection point for tail panel inner
section / luggage compartment floor.
Cut through tail panel.
Note:
With side walls installed, the tail panel cannot be removed in
its complete combination of inner and outer sections.
Remove tail panel.
Remove scrap metal.
Straighten and grind joint surfaces.
Clean connection faces on spare tail panel inner section.
RA Replacing tail panel (touring)
