5 Series E39 520i (M52) TOUR

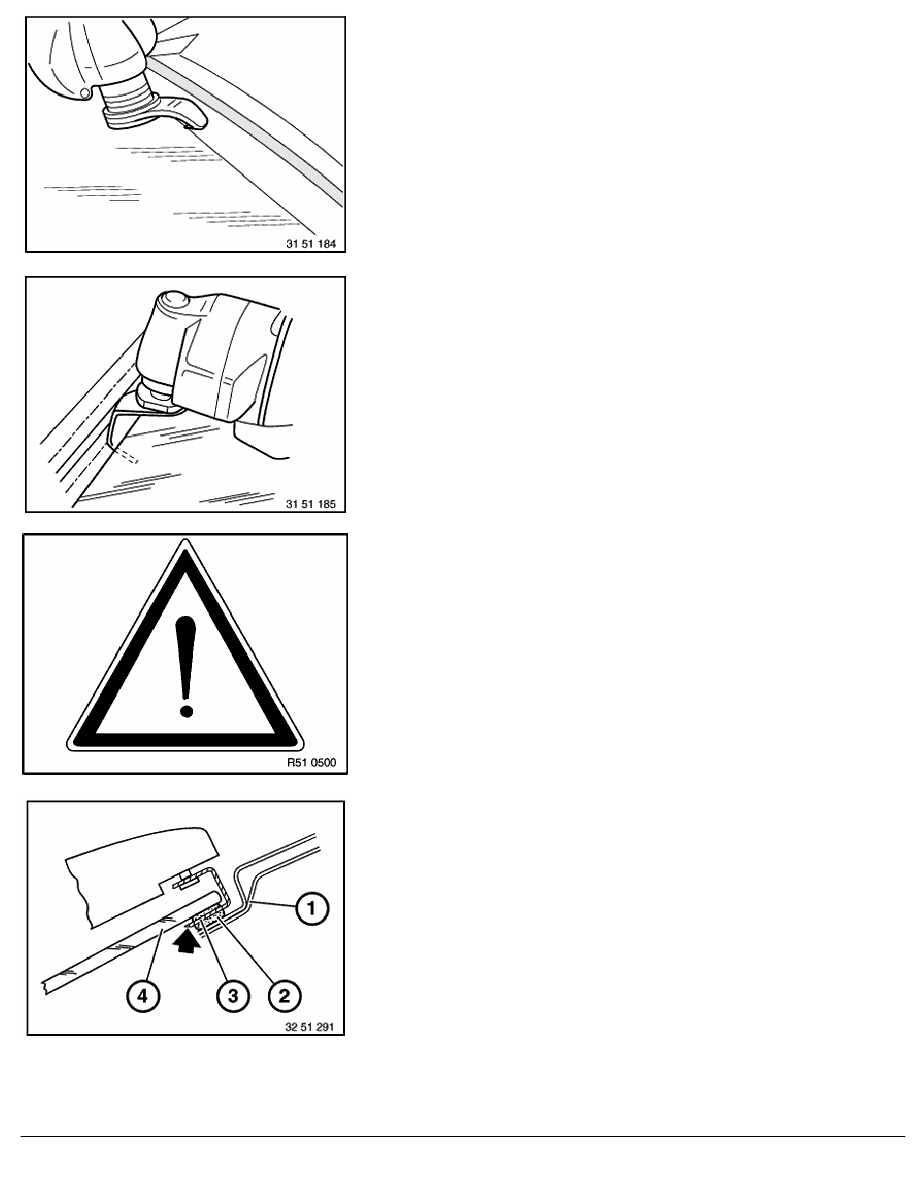

Carefully insert knife blade between rear window frame and rear
window.
Guide web of knife parallel to rear window.
Caution!
When reusing the rear window:
Avoid damaging lines for rear window heating/antenna.
Cut through cement bead as close as possible to top of rear
window.
1.
Rear window frame
2.
Cement bead
3.
Knife
4.
Rear window
RA Removing and installing rear window (touring)
