5 Series E39 520i (M52) TOUR
64 12 600
Removing and installing or replacing fuel
pump

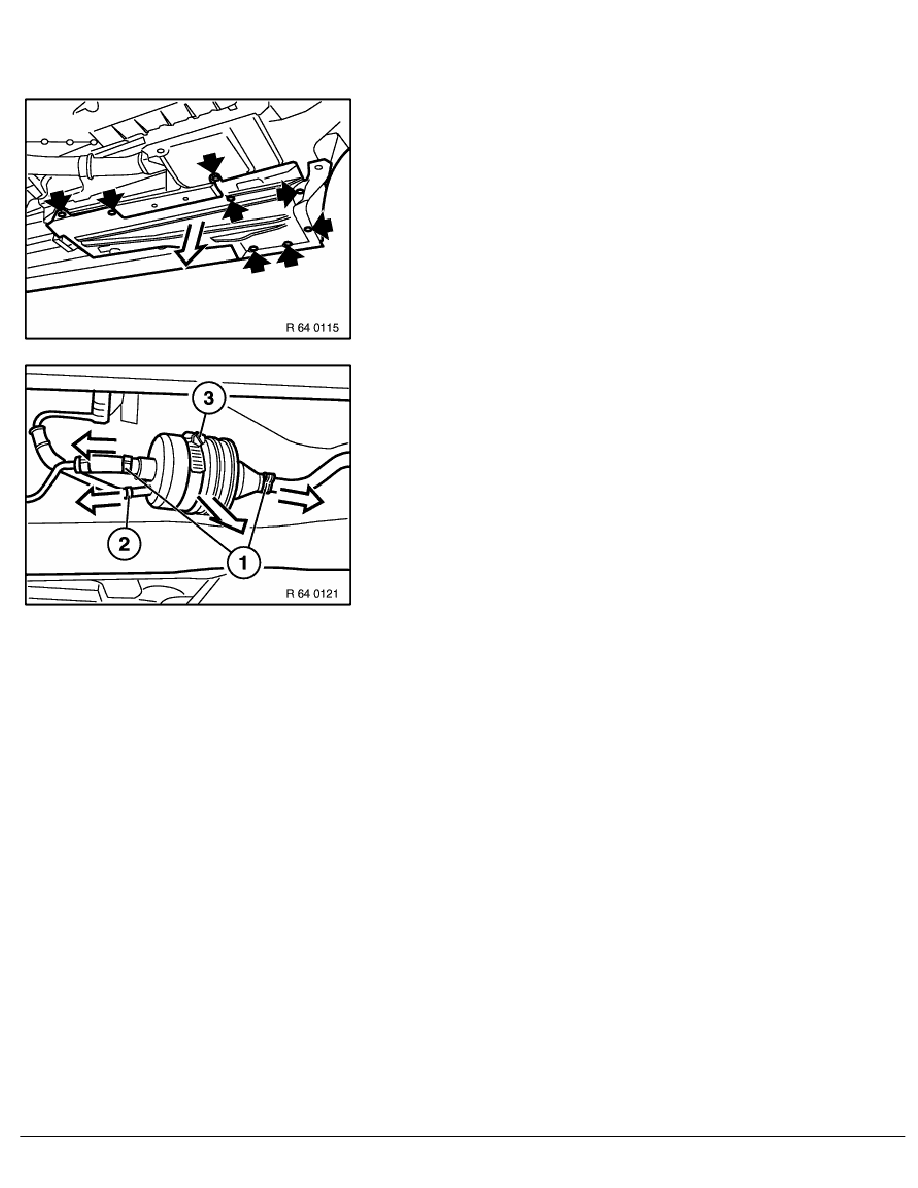

Release screws and remove floor covering.
Release hose clips (1) and disconnect hoses. Pull off plug (2).
Release clip (3) and remove fuel pump.
RA Removing and installing or replacing fuel pump
