5 Series E39 525tds (M51) SAL
18 00 020
Removing and installing complete exhaust
system (M51)

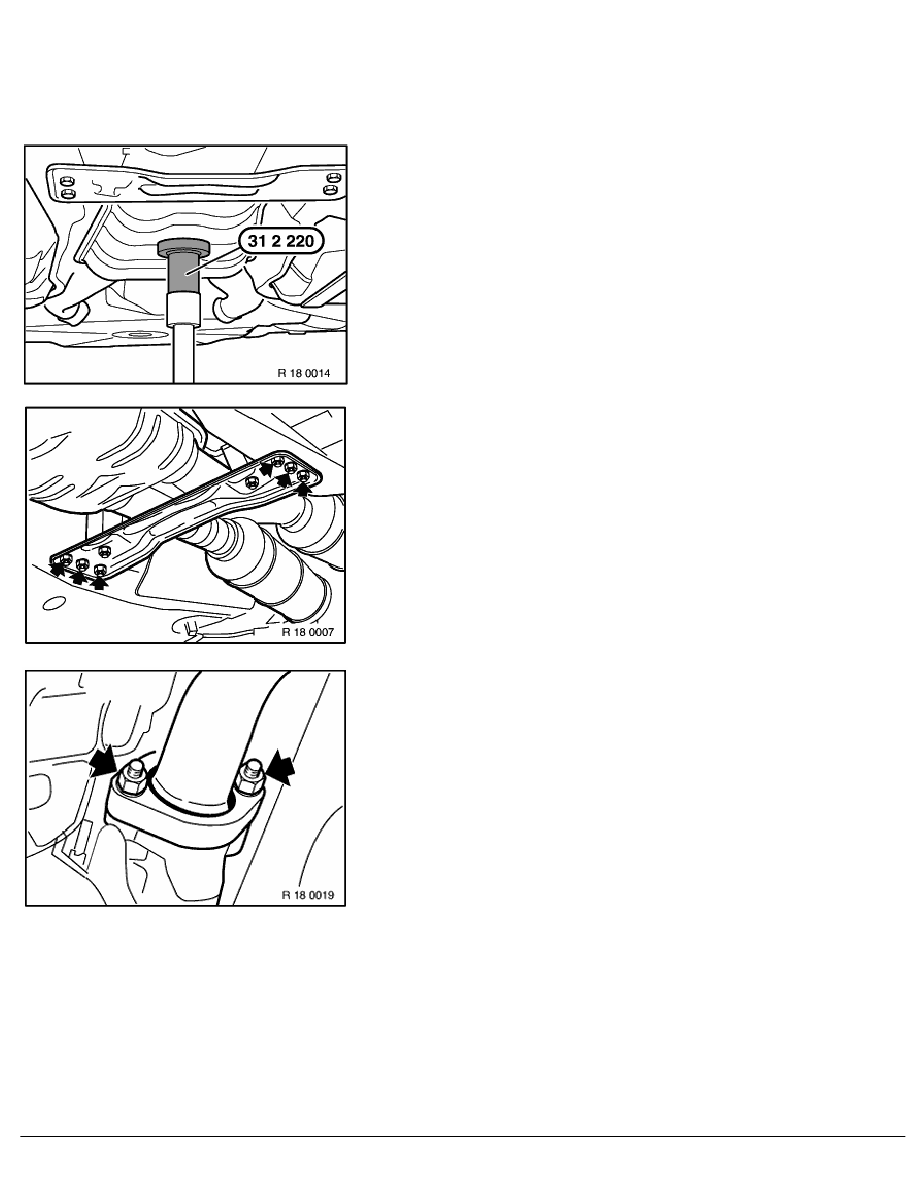

Unscrew and remove splash guard.
Support exhaust assembly.
(weight approx. 25 kg)
Detach suspension on catalytic converter at rear from body.
Unfasten nuts and remove exhaust pipe from turbocharger.
Installation:
Replace self-locking nuts.
Coat thread with copper paste -CRC-, refer to BMW Parts
Service.
RA Removing and installing complete exhaust system (M51)
BMW AG - TIS
20.02.2013 01:09
Issue status (12/2007) Valid only until next DVD is issued
Copyright
Page - 1 -
