5 Series E39 530d (M57) SAL
33 41 151
Replacing left or right wheel bearing on rear
axle shaft
Remove wheel,
refer to 36 10 300 .

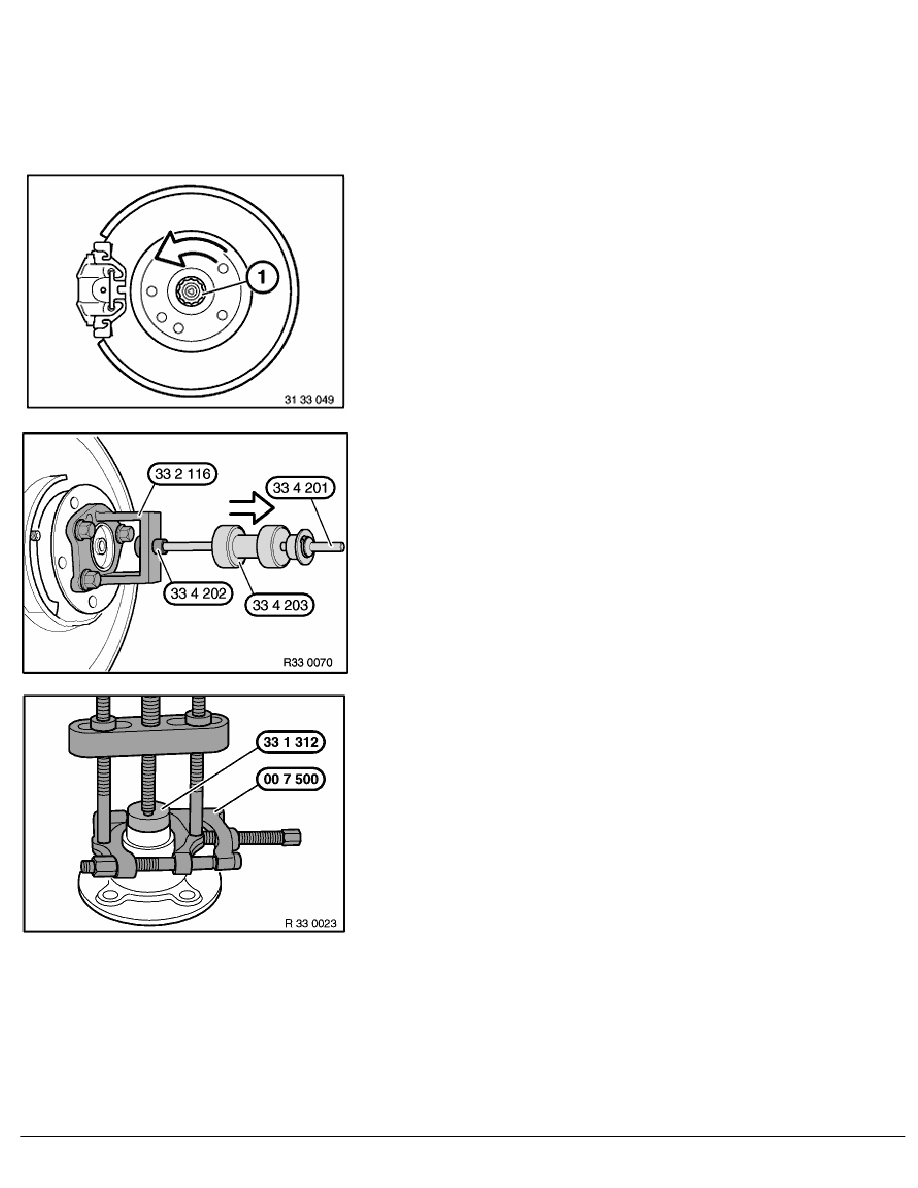

Unfasten collar nut (1).
Remove brake disk,
refer to 34 21 320 .
Secure special tool 33 2 116 to drive flange with wheel nuts.
Drive out drive flange with special tool 33 4 201 / 202 / 203.
Caution!
The wheel bearing is destroyed when the drive flange is
removed and cannot be reused!
If necessary, remove inner bearing race with special
tool 33 1 312 / 00 7 500 from groove in bearing race.
Note:
Refer also to 33 41 ... Detaching wheel bearing inner race.
RA Replacing left or right wheel bearing on rear axle shaft
