5 Series E39 530d (M57) SAL
65 11 030

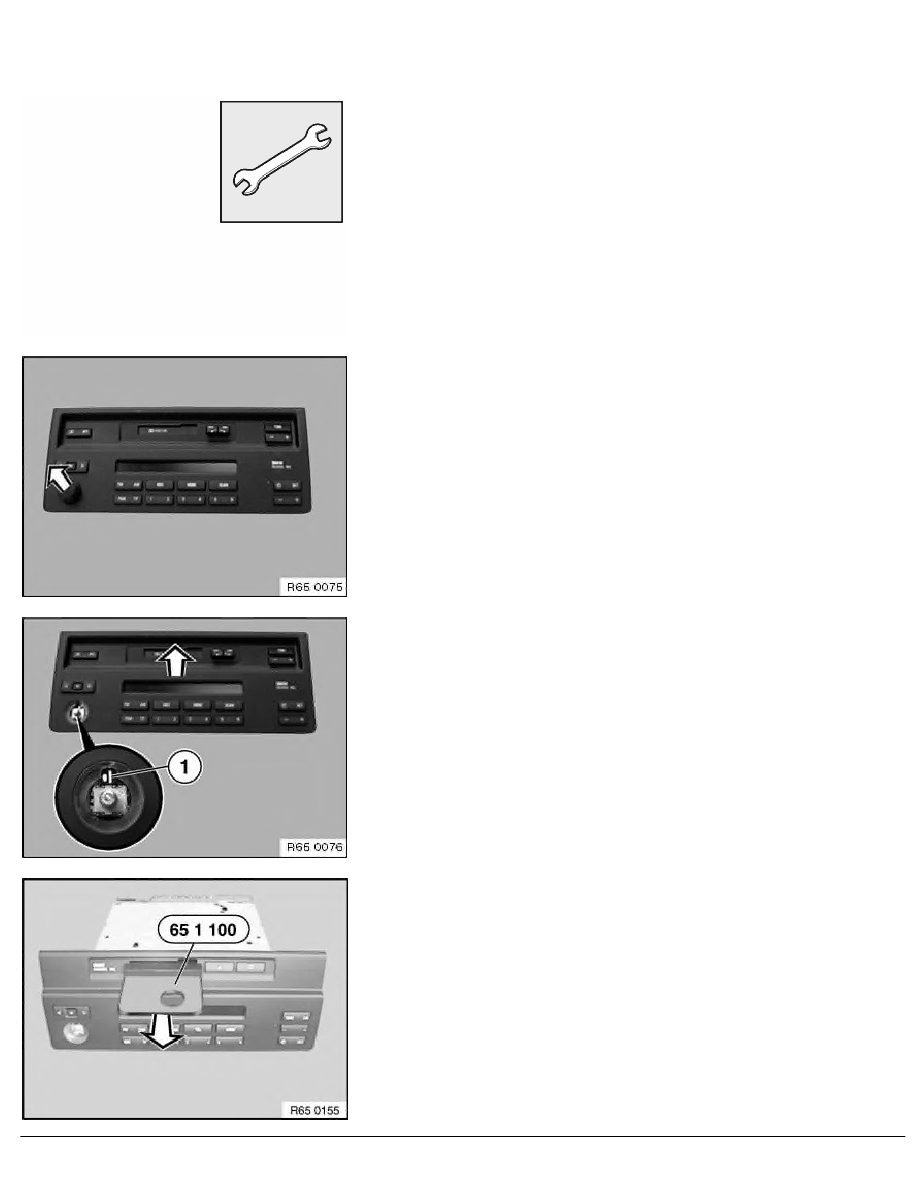

Removing and installing / replacing radio
receiver
Special tools required:
•
65 1 100
Radio without MID or IRIS
Remove knob from volume control.
Insert screwdriver (5.5) into slot (1) approx. 1 mm and turn
through 90
°
.
Hook special tool 65 1 100 into cassette socket and pull out
radio.
RA Removing and installing / replacing radio receiver
BMW AG - TIS
20.02.2013 23:53
Issue status (12/2007) Valid only until next DVD is issued
Copyright
Page - 1 -
