5 Series E39 M5 (S62) SAL
18 00 020
Removing and installing complete exhaust
system (S62)
Special tools required:
•
31 2 220
Remove rear splash guard.
Remove complete rear bumper.
Warning!
Scalding hazard!
These tasks should only be carried out on an exhaust system
that has cooled down!

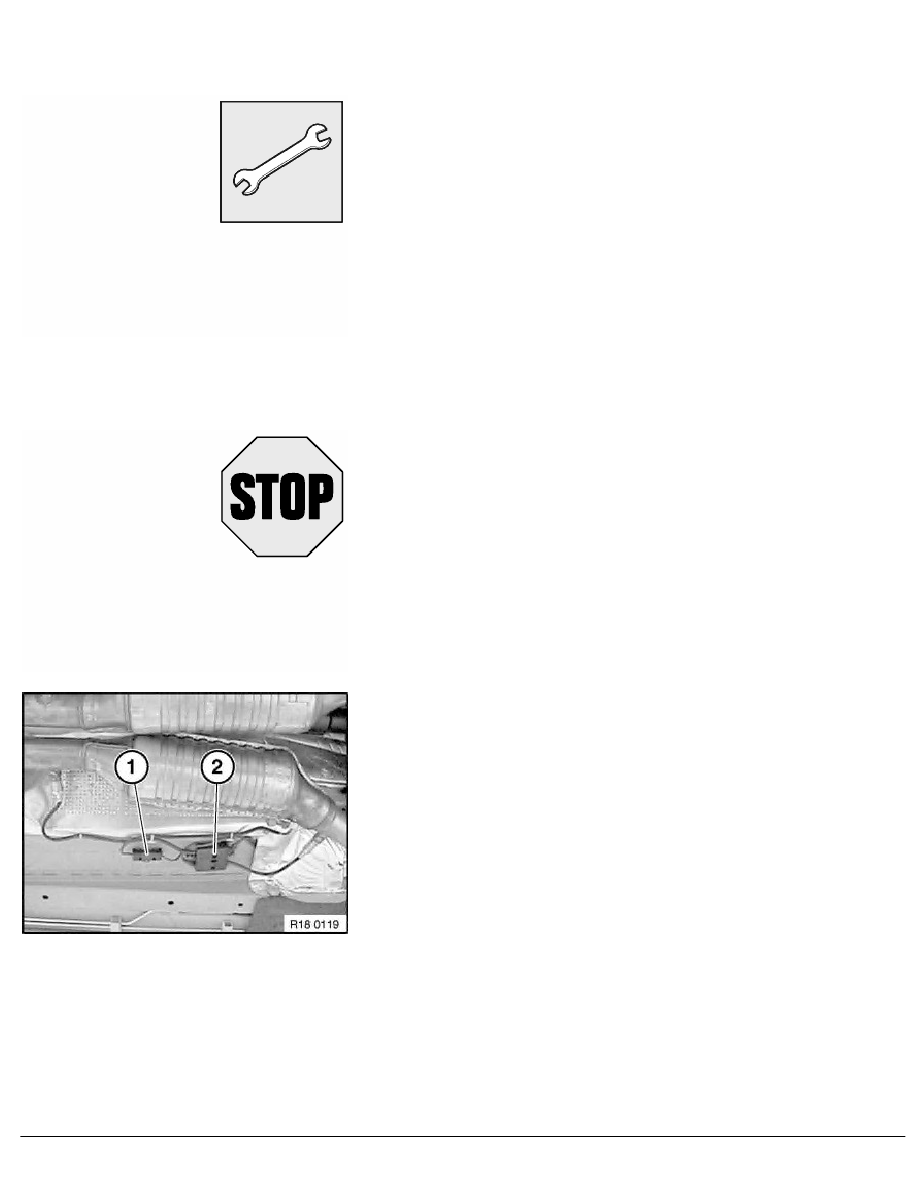

Remove cable holder (1).
Disconnect plug connection for exhaust temperature sensor on
left.
Information: Discontinuation of exhaust temperature sensor
Remove cable holder (2).
Disconnect plug connection for oxygen and monitor sensors on
left and right.
RA Removing and installing complete exhaust system (S62)
