5 Series E60 M5 (S85) SAL
Installation:

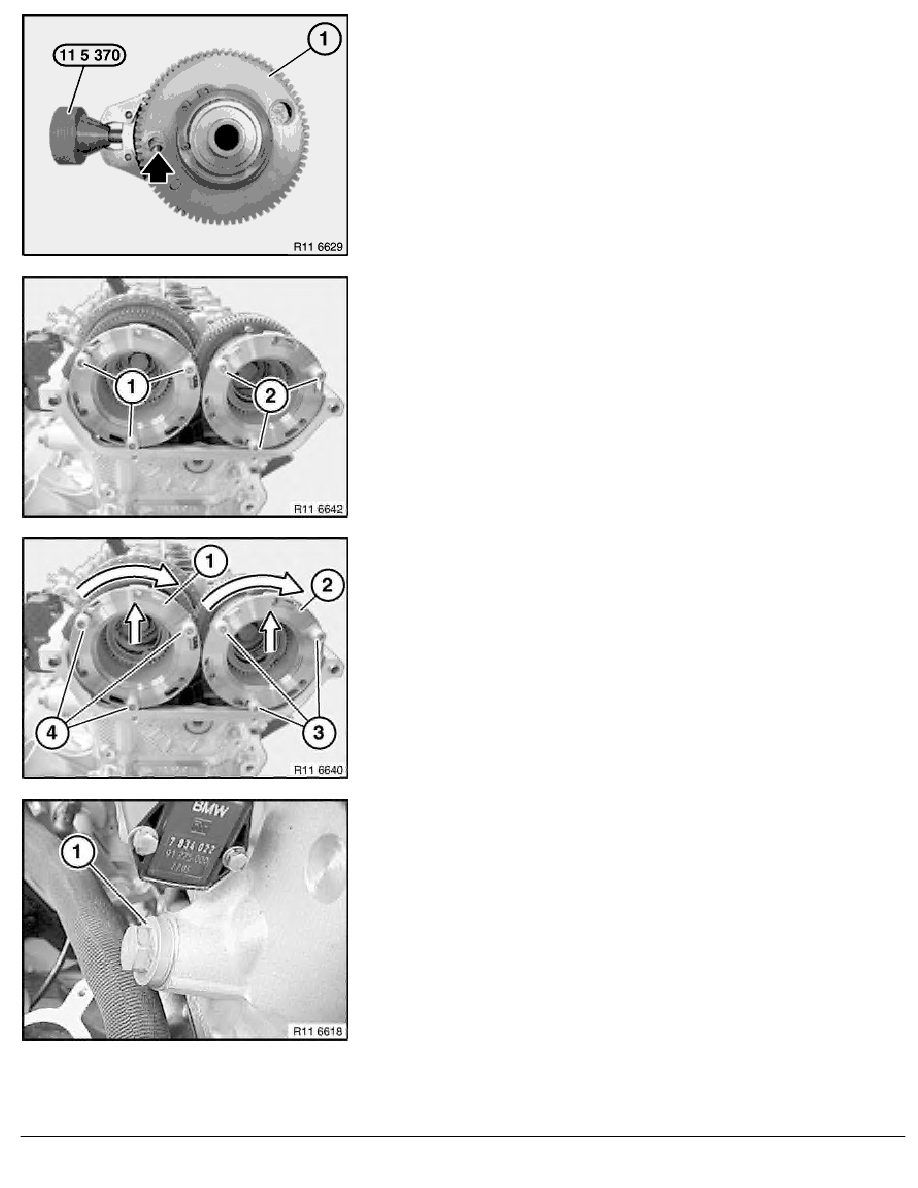

If the hexagon socket screw is released or forgotten by mistake,
the gear teeth can be readjusted with special tool 11 5 370 .
Screw in special tool 11 5 370 until gearwheel (1) lines up with
bore (see arrow) on thread.
Failure to tension the exhaust VANOS gear will result in rattling
noises at idle.
Release hexagon socket screws with washers (1 and 2).
Installation:
If reusing the VANOS gear, replace hexagon socket screws with
washers (1 and 2).
Important!
Release central bolt only when inner sleeves (1 and 2) with
elongated holes are at left stop.
Pull VANOS gear with outer sleeve forwards until inner
sleeves (1 and 2) with elongated holes are at left stop.
Join hexagon socket screws with washers (3 and 4) to 10 Nm .
Remove left chain tensioner.
Installation:
Replace sealing ring.
Tightening torque: 11 31 1AZ
.
