5 Series E60 M5 (S85) SAL
51 16 ...
Removing and installing/replacing front inner
cup holder carrier
Necessary preliminary tasks:
•
Remove front inner cup holder
•
Remove decorative strip on instrument panel on right
•
Remove right glovebox with housing

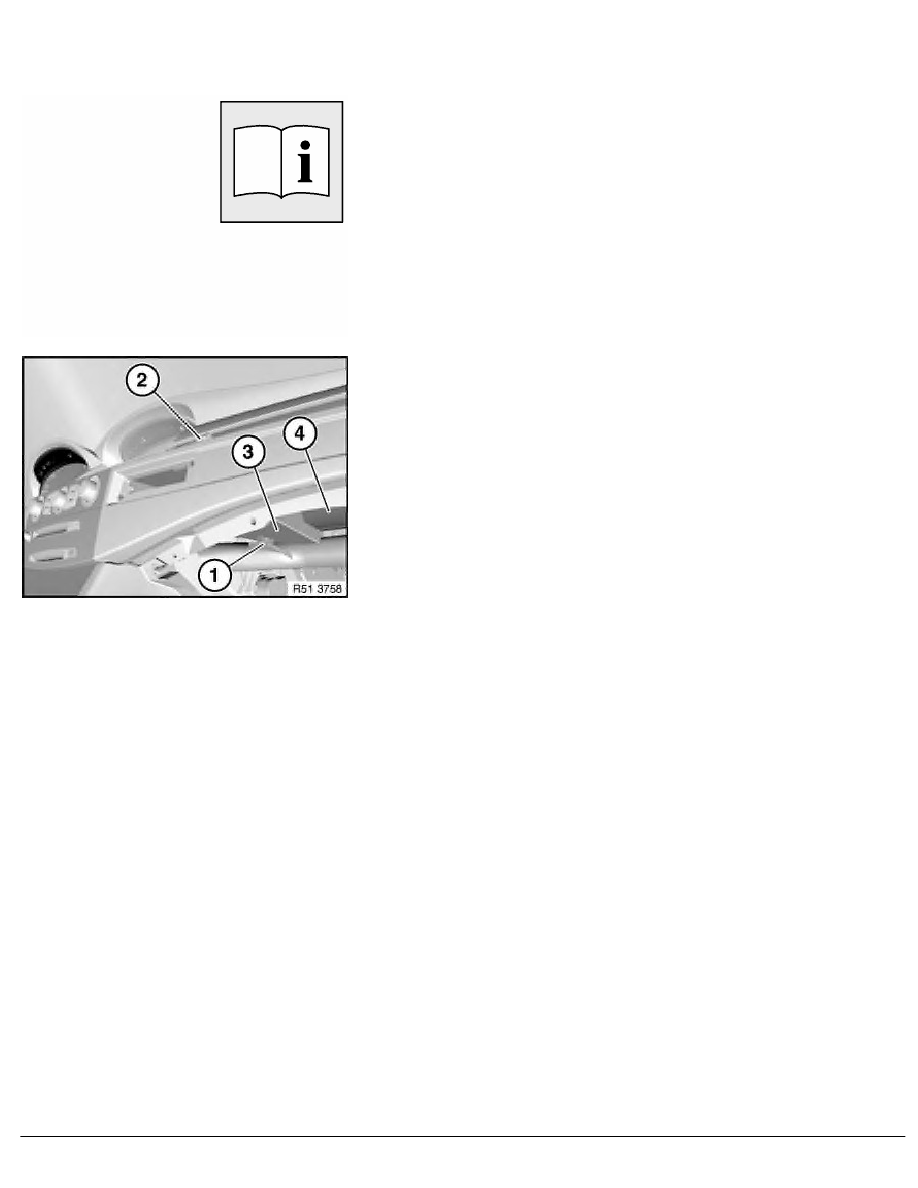

Remove screws (1) and (2).
Note:
Front inner cup holder carrier (3) can only be removed together
with airbag module on passenger side (4).
Remove airbag module on passenger side (4) .
RA Removing and installing/replacing front inner cup holder carrier
BMW AG - TIS
23.02.2013 00:04
Issue status (12/2007) Valid only until next DVD is issued
