5 Series E61 530xi (N52K) TOUR
22 11 001
Replacing left engine mount (N52/N52K/N53)
Necessary preliminary tasks:
-
Secure engine in installation position.
-
Remove underbody protection.
-
Remove left engine support arm.
-
Observe safety instructions on raising the vehicle.
-
If necessary, remove steering gear cover at side

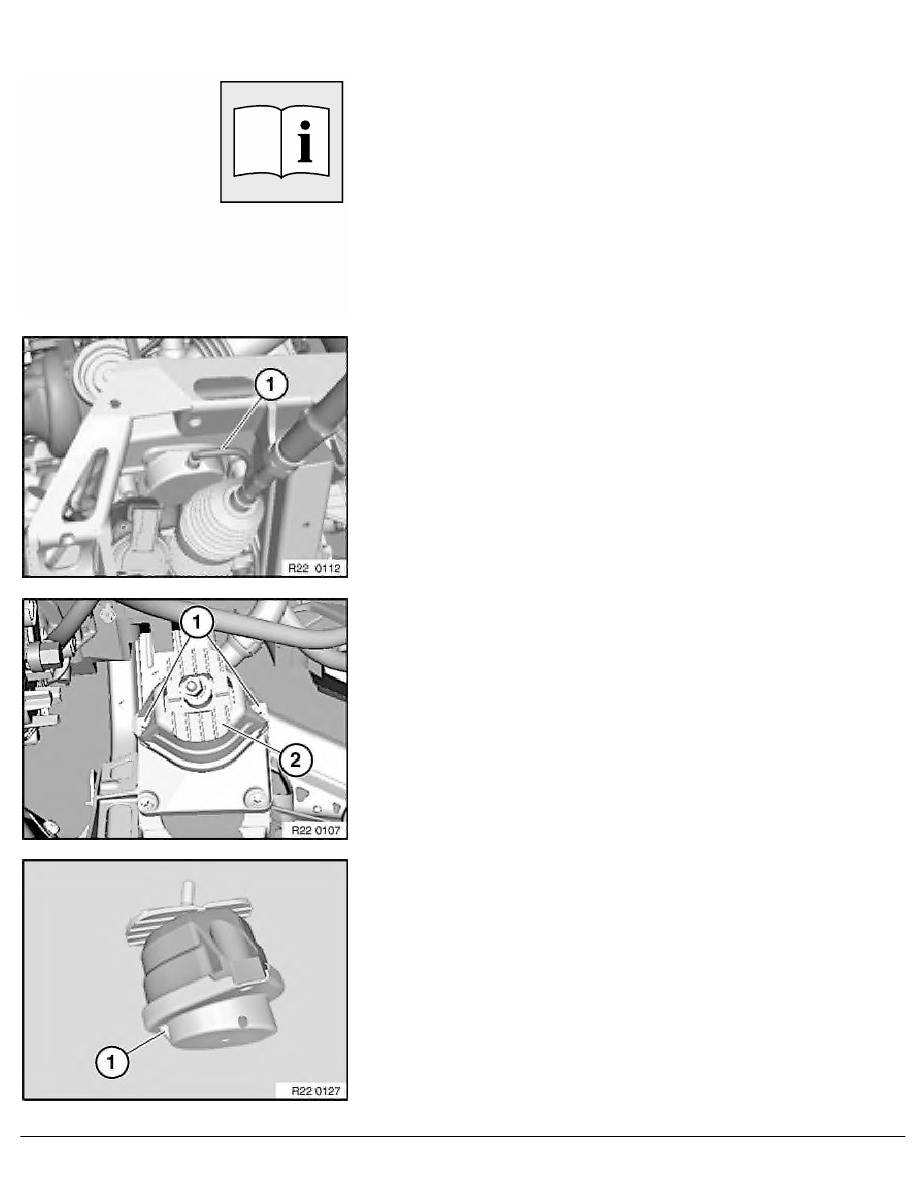

Pull vacuum hose (1) with angle out of engine mount.
Release screws (1) and remove engine mount (2).
Tightening torque 22 11 4AZ
.
Installation:
Lug (1) of engine mount must point to middle of vehicle.
Engine mount designations:
Right engine mount
-
Even component number
Left engine mount
-
Odd component number
RA Replacing left engine mount (N52/N52K/N53)
BMW AG - TIS
18.02.2013 15:27
Issue status (12/2007) Valid only until next DVD is issued
