5 Series E61 535d (M57T2) TOUR
51 12 801
Replacing bracket for rear bumper at left or
right
Necessary preliminary tasks:
•
Remove rear bumper trim

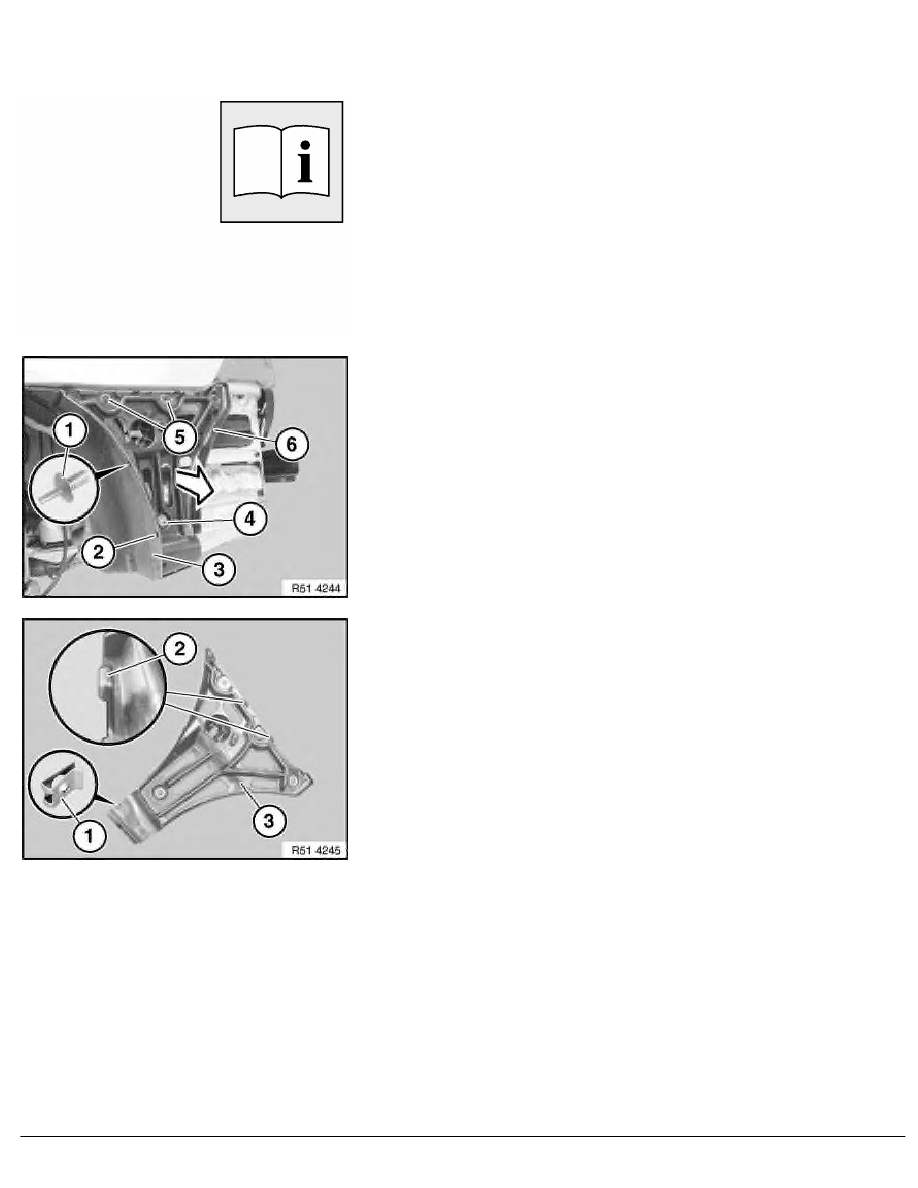

Release expander rivet (1) and screw (2) on wheel cover (3).
Release nut (4) and screws (5) on bracket (6).
Tightening torque 51 12 9AZ
.
Remove bracket (6) in direction of arrow.
Installation:
Following parts on bracket (3) must not be damaged or missing:
1
Sheet metal nut
2
Guides
RA Replacing bracket for rear bumper at left or right
