5 Series E61 535d (M57T2) TOUR

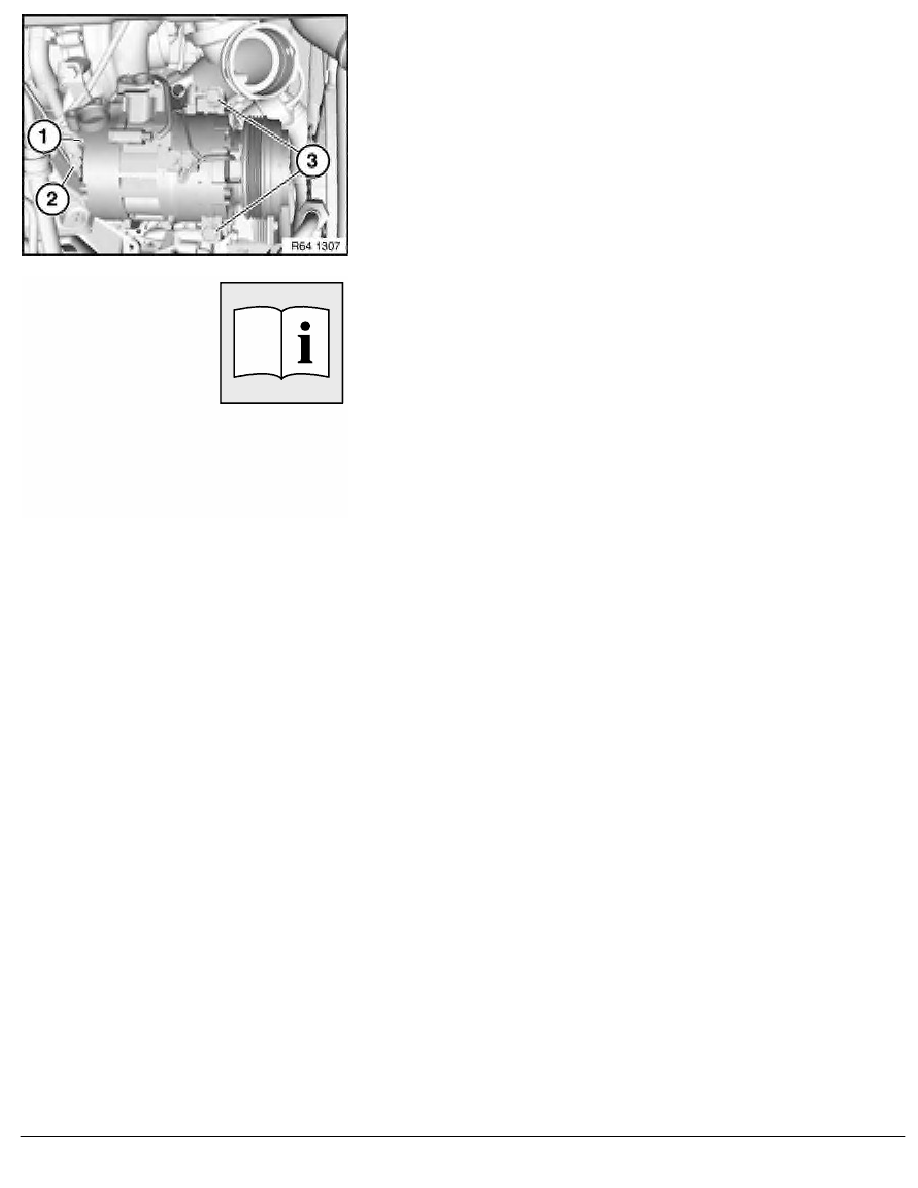

Secure compressor (1) against falling out.
Release bolt (2) and then bolts (3).
Remove compressor (1).
Installation:
Replace all sealing rings and moisten with refrigerant oil.
If necessary, replace damaged adapter sleeves
Tightening torque 64 52 3AZ
.
After installation:
•
Evacuate and fill A/C system
RA Replacing A/C system compressor (M57T2)
