5 Series E61 535d (M57TU) TOUR

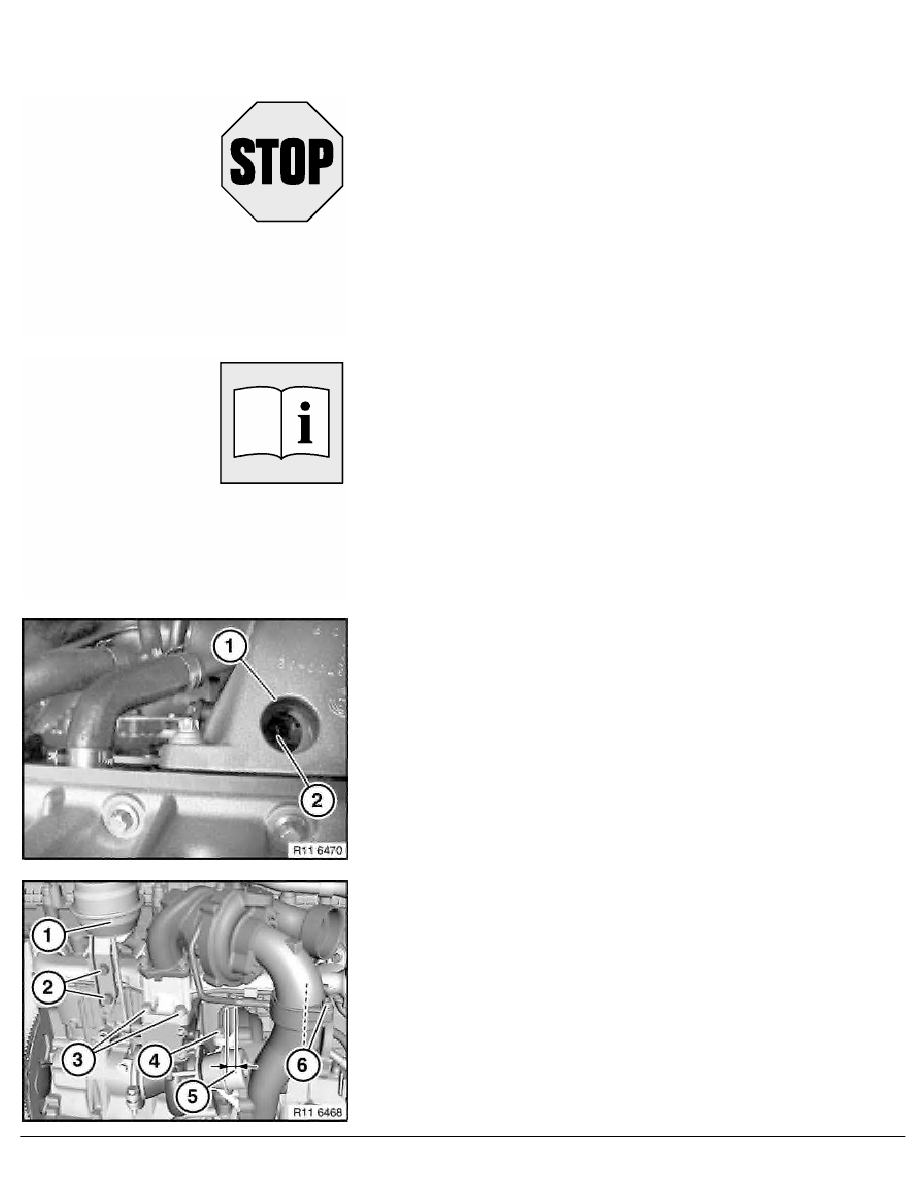

Release screws (3).
Tightening torque: 11 65 3AZ
.
Release bolts (2).
Lay oil return line (3) to one side.
Installation:
Replace seal.
Release screw (6).
Release screws (5).
Remove holder (4).
Release screw (1).
Remove L.P. turbocharger downwards.
Installation:
Replace seal.
Adjust turbine control flap.
Assemble engine.
Important!
To avoid damaging the threads and prevent turbocharger
leakage, insert retaining screws in 1/2 turns simultaneously.
RA Removing and installing / replacing low-pressure turbocharger (large turbocharge
