6 Series 630i (N53) Coupe

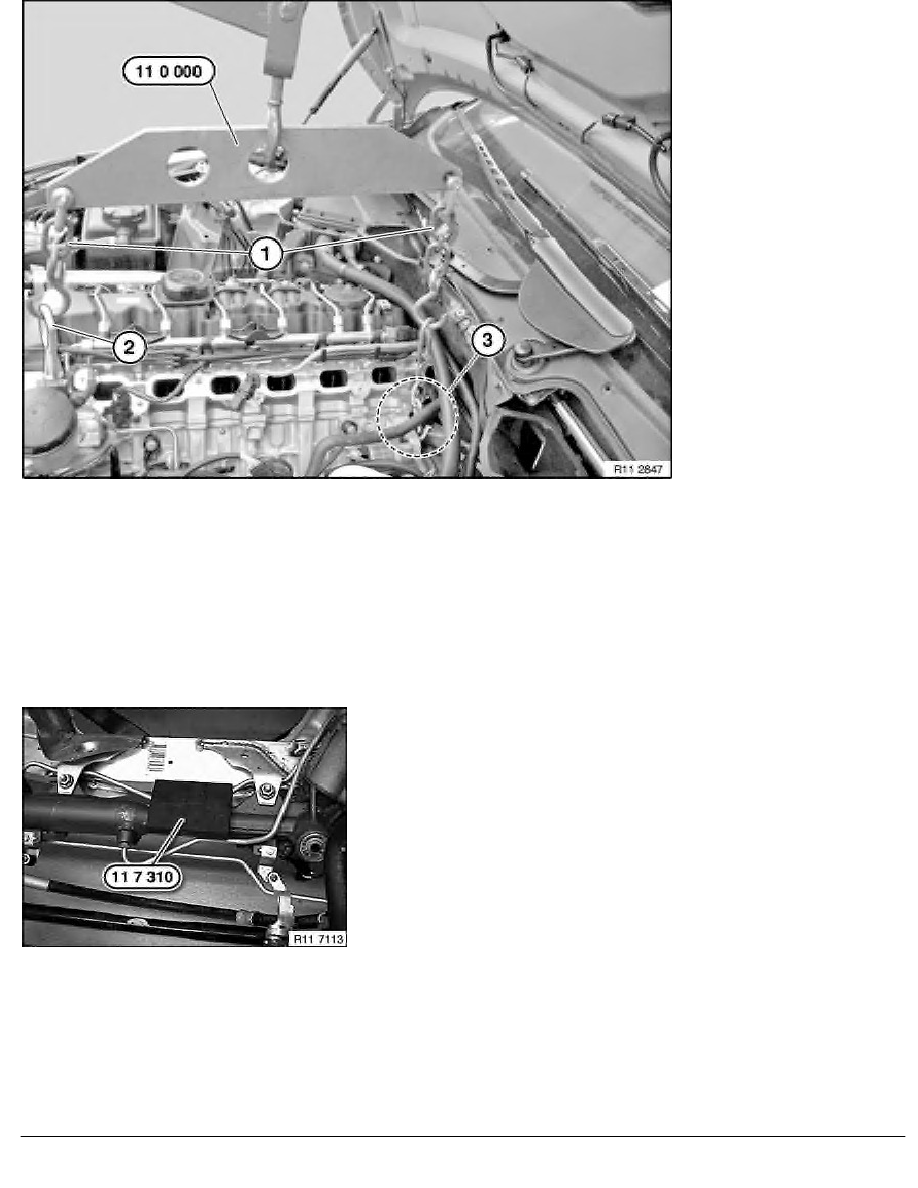

Suspend special tool 11 0 000 from engine crane.
Attach both chains (1) to special tool 11 0 000 .
Suspend short chain in screwed-in towing eye (2).
Suspend long chain in opening (3) on engine block.
(The EGR pipe must not be damaged!)
Unscrew left and right engine mounts.
Lift engine out with crane.
Installation:
Secure special tool 11 7 310 to steering gear.
