6 Series 630i (N53) Coupe
51 13 316
Removing and installing/replacing trim strip
on roof gutter at left or right

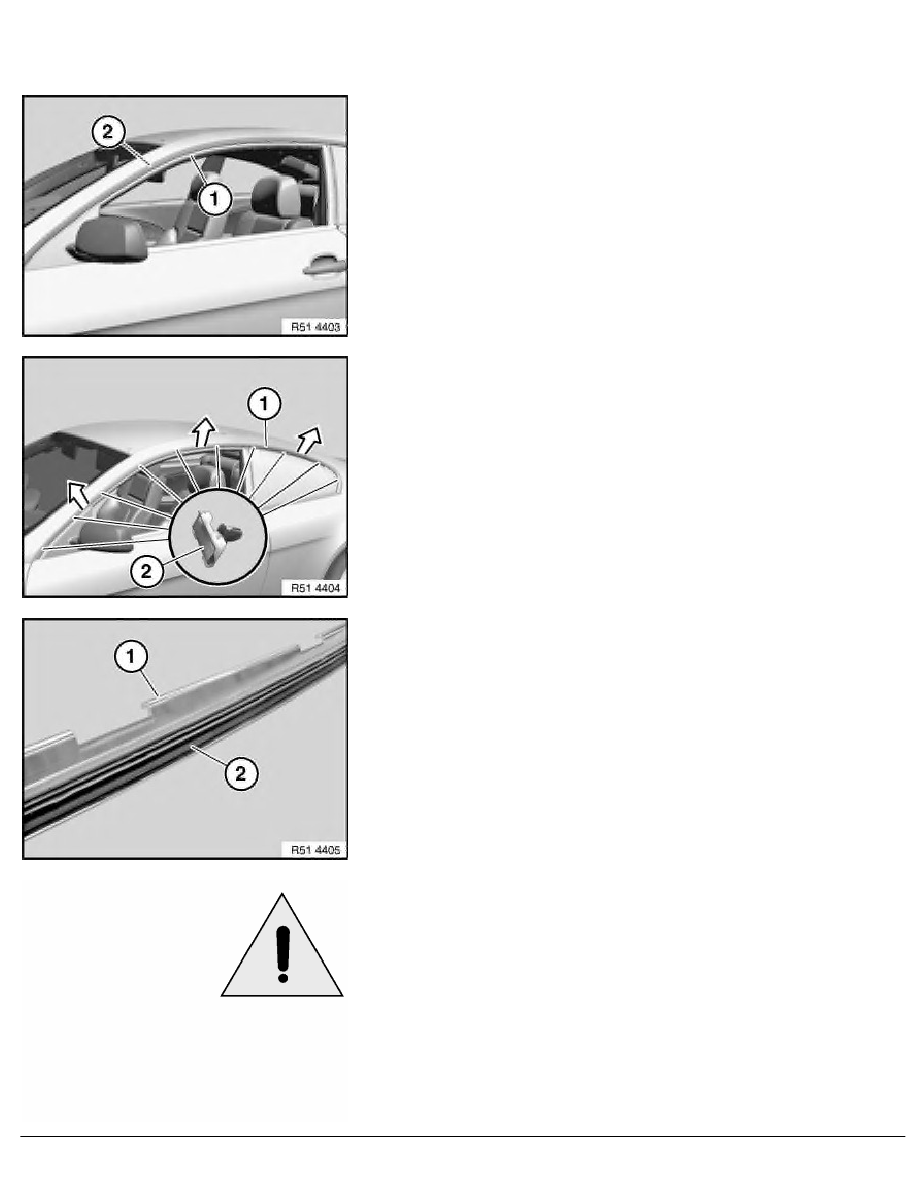

Detach mucket (1) in area of trim strip (2).
Important!
Make sure that body is not damaged.
Start at front, pull off trim strip (1) in direction of arrow from
clips (2).
Installation:
To avoid leaks and noises, check all clips (2) for visible damage.
If necessary, replace faulty clips (2).
Installation:
Make sure sealing strip (2) is correctly seated on trim strip (1).
Sealing strip (2) must not be damaged.
Important!
-
Carry trim strip by its middle section only (risk of damage)
-
Perform installation work with a second person helping
-
Prepositioning of trim strip
-
Ensure drip moulding runs parallel to side frame (risk of
breakage)
RA Removing and installing/replacing trim strip on roof gutter at left or right
BMW AG - TIS
17.01.2013 16:27
Issue status (12/2007) Valid only until next DVD is issued
