6 Series 630i (N53) Coupe
51 41 070
Removing and installing/replacing upper
section on front armrest
Special tools required:
•
00 9 317

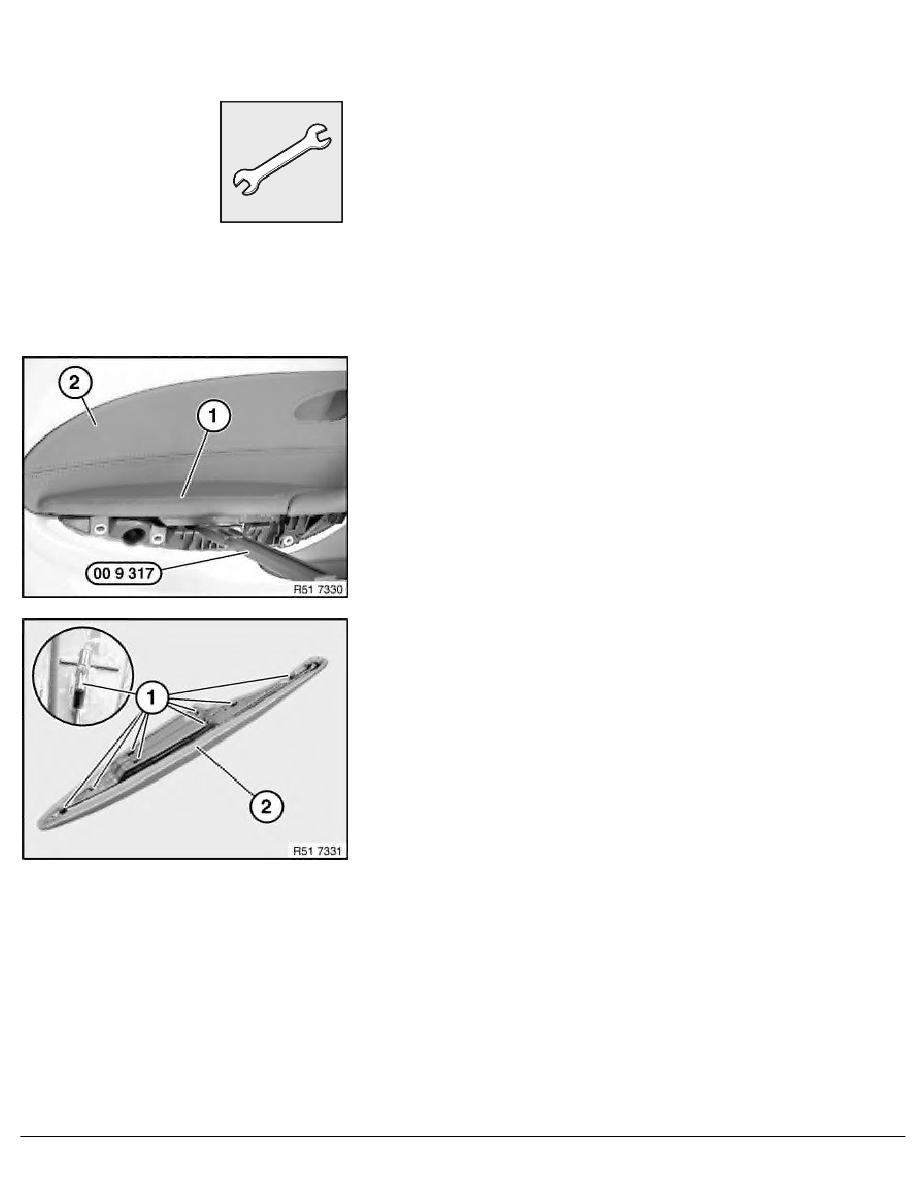

Lever out upper section (1) of door trim panel (2) with special
tool 00 9 317 .
Installation:
Guides (1) on upper section (2) must not be damaged.
RA Removing and installing/replacing upper section on front armrest
