6 Series 630i (N53) Coupe
51 43 251
Removing and installing/replacing trim panel
for left or right rear roof pillar (C-pillar)

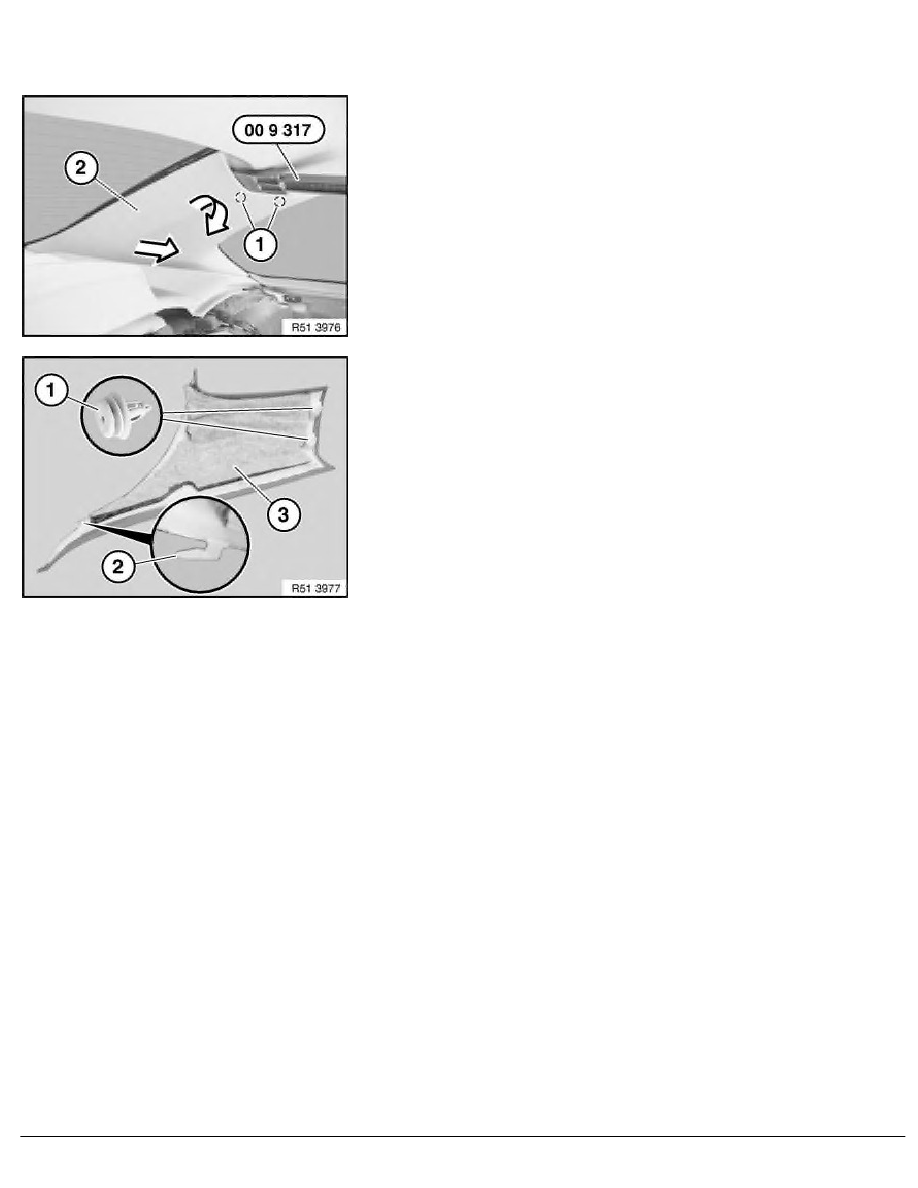

Unclip clips (1) of trim panel (2) at top in direction of arrow.
Feed out trim panel (2) at bottom in direction of arrow.
Installation:
If necessary, replace faulty clips (1).
Guide (2) of trim panel (3) must not be damaged.
RA Removing and installing/replacing trim panel for left or right rear roof pillar
