6 Series 630i (N53) Coupe
61 35 965
Removing and installing/replacing rear parcel
antenna for comfort access system
Necessary preliminary tasks:
•
Remove both trims for roof pillar at rear
•
Remove rear seat
•
Remove both rear head restraints
•
Remove armrest for rear seat backrest
•
Remove backrest
•
Remove both trims for door pillar at top
•
Remove both trims on armrest of side trim panel
•
Remove both side trim panels at rear
•
Remove panel for rear window shelf

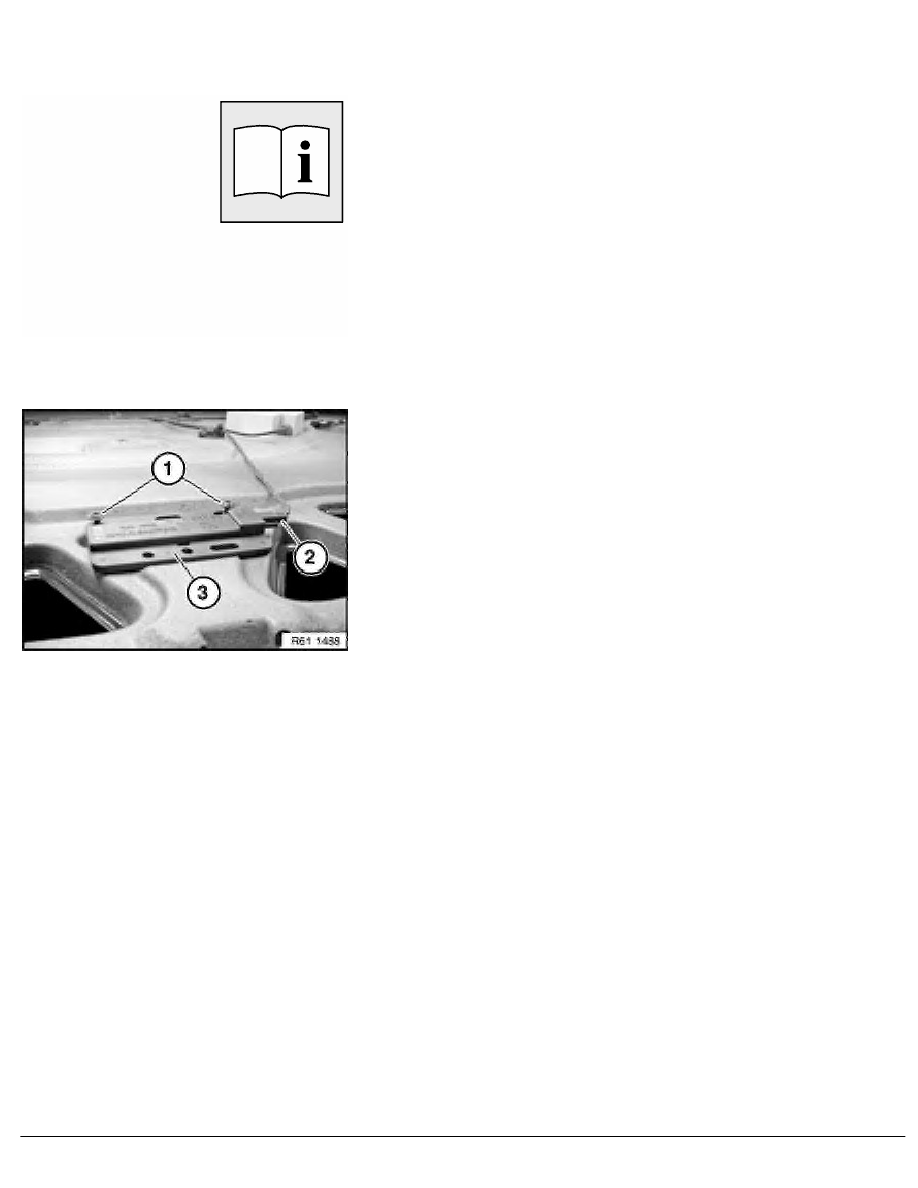

Release screws (1).
Disconnect plug connection (2).
Remove interior antenna for comfort access system (3).
RA Removing and installing/replacing rear parcel antenna for comfort access system
