6 Series 630i (N53) Coupe
64 11 912
Removing and installing/replacing
temperature sensor for heating unit
Necessary preliminary tasks:
•
Remove on-board monitor.

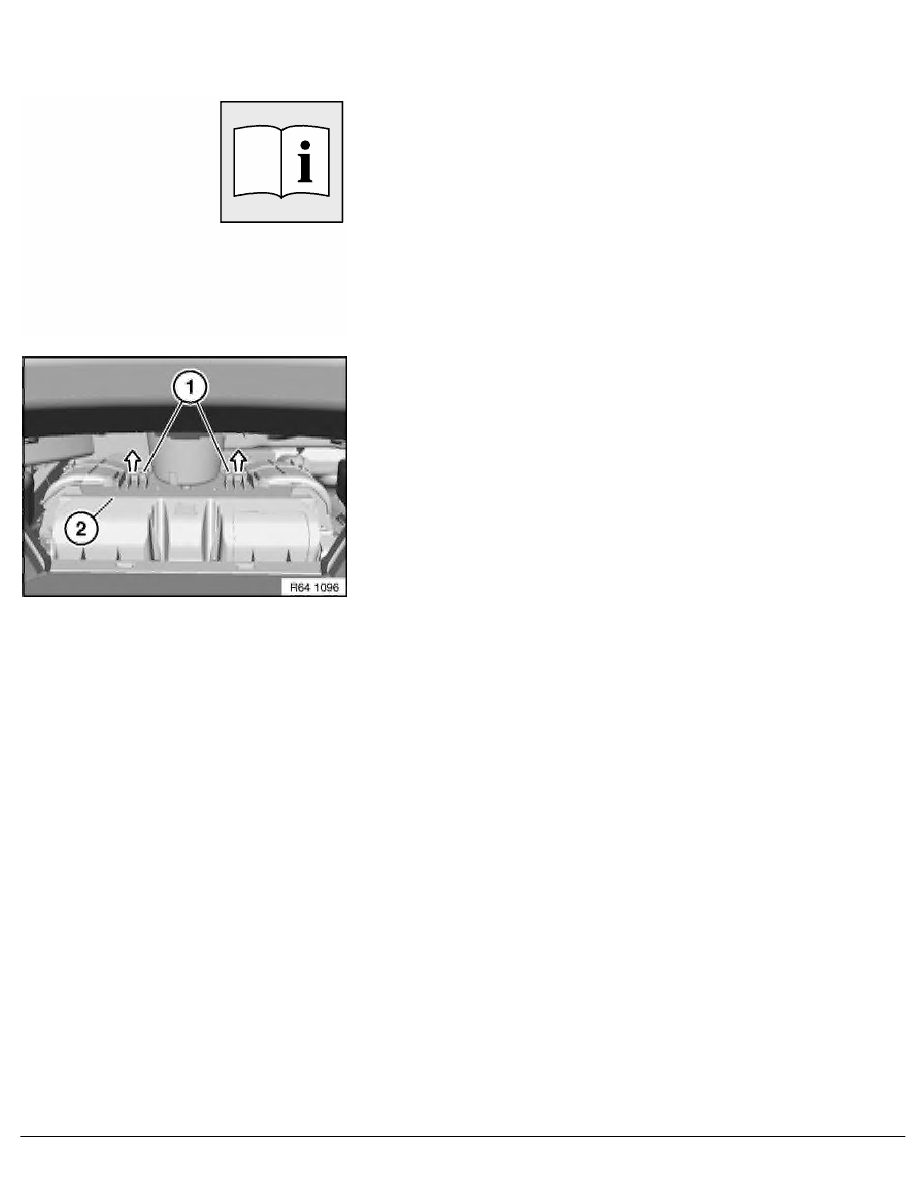

Unlock plug connection (1) on left/right and disconnect.
Pull out temperature sensor for heating unit in direction of arrow
out of heating unit (2).
Installation:
Make sure temperature sensor for heating unit is correctly seated.
RA Removing and installing/replacing temperature sensor for heating unit
BMW AG - TIS
17.01.2013 18:49
Issue status (12/2007) Valid only until next DVD is issued
