6 Series 630i (N53) Coupe

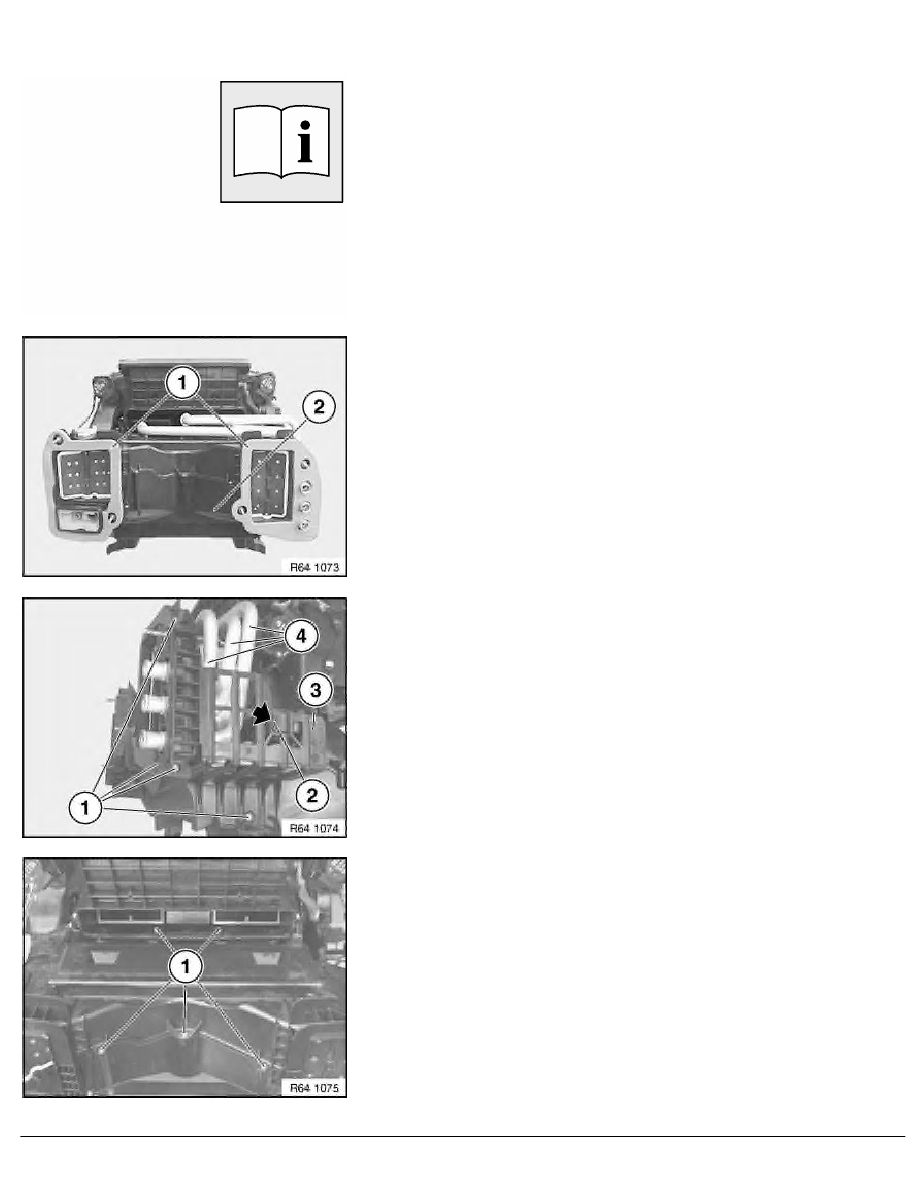

Release screws (1).
Installation:
Make sure flaps (2) are correctly seated in mountings (3).
Release screws (1).
Remove upper housing section (2) in direction of arrow.
Installation:
Make sure upper housing section (2) is correctly seated on lower
housing section.
Make sure flaps (3) are correctly seated in mountings (4).
Release screws (1).
Release clip (2).
Remove cover (3) in direction of arrow.
Installation:
Make sure cover (3) is correctly seated.
Important!
Do not bend radiator fins.
If necessary, clean or straighten radiator fins with slat comb.
