6 Series 630i (N53) Coupe
66 31 006
Removing and installing (replacing) ACC
sensor
Special tools required:
•
00 9 317

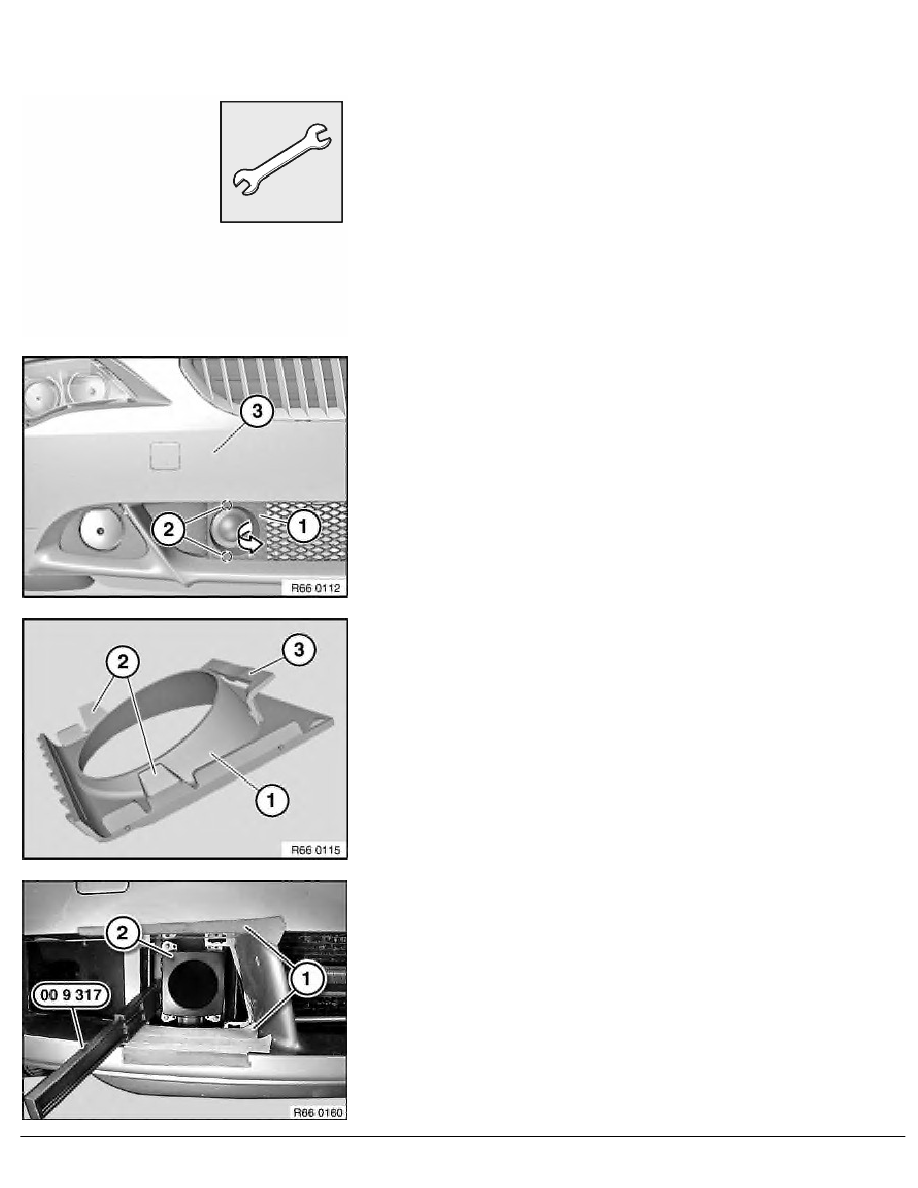

Unclip trim (1) at points (2) and remove in direction of arrow
from bumper trim (3).
Important!
To avoid damaging bumper trim when feeding ACC sensor
out, cover area around bumper cutout with suitable adhesive
tape.
Installation:
Make sure trim (1) is correctly seated.
Locking hooks (2) and retaining element (3) must not be
damaged.
Important!
Secure ACC sensor (2) against falling out.
Tape off bumper in working area with adhesive tape (1).
Using special tool 00 9 317 , unclip ACC sensor (2) from
holders on both sides.
RA Removing and installing (replacing) ACC sensor
BMW AG - TIS
17.01.2013 19:23
Issue status (12/2007) Valid only until next DVD is issued
