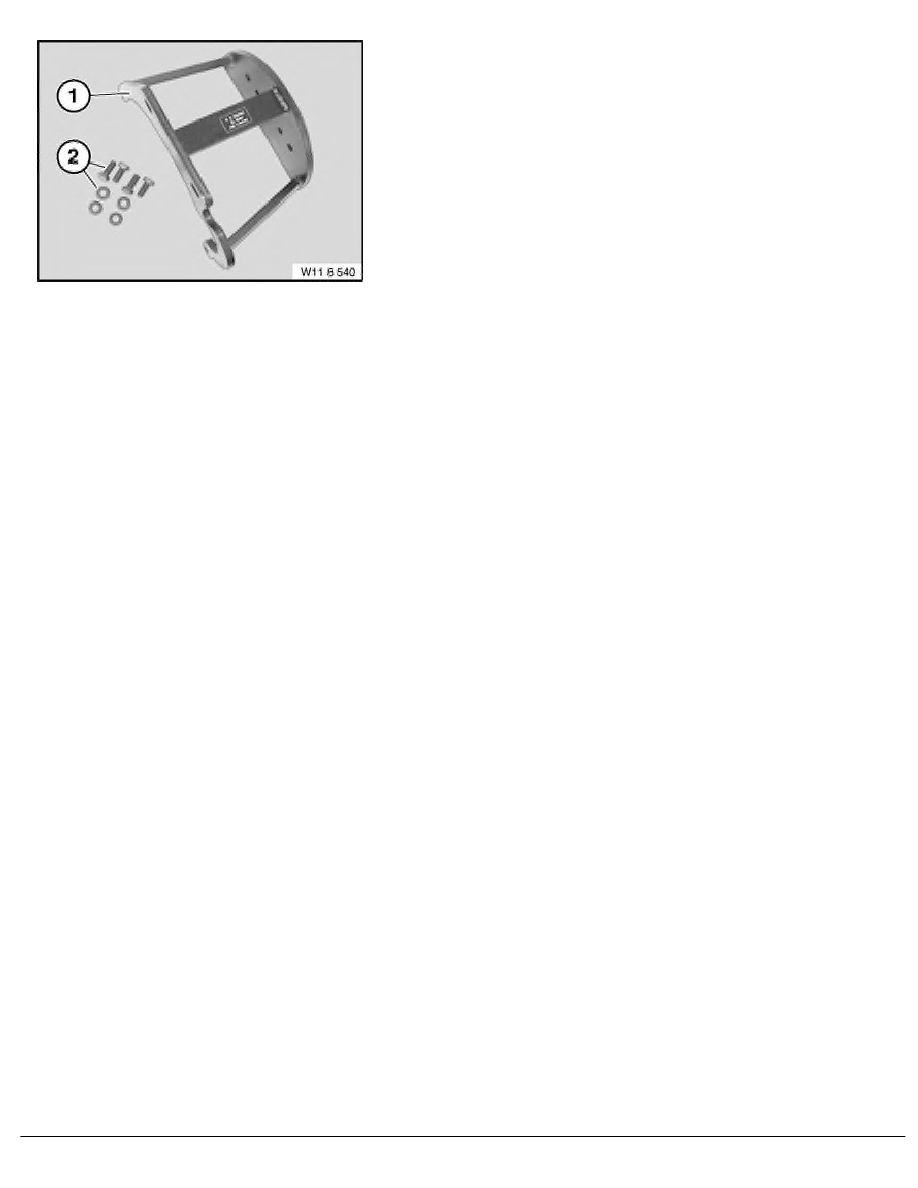

11 8 540

Engine support plate

In conjunction with:

00 1 450" 00 2 300

Note:

For accommodating engine on assembly

stand.

Engine:

N52, N53, N54

SI number:

1 20 06 (299)

Order number:

11 8 540

Engine support plate

Consisting of:

1   = 11 8 541

Engine take-up

2   = 11 8 542

Set of screws (4 x)

SWZ  Engine support plate

BMW AG - TIS

18.01.2013  01:43

Issue status (12/2007) Valid only until next DVD is issued

Copyright

Page  - 1 -
