7 Series E38 740iL (M62) SAL

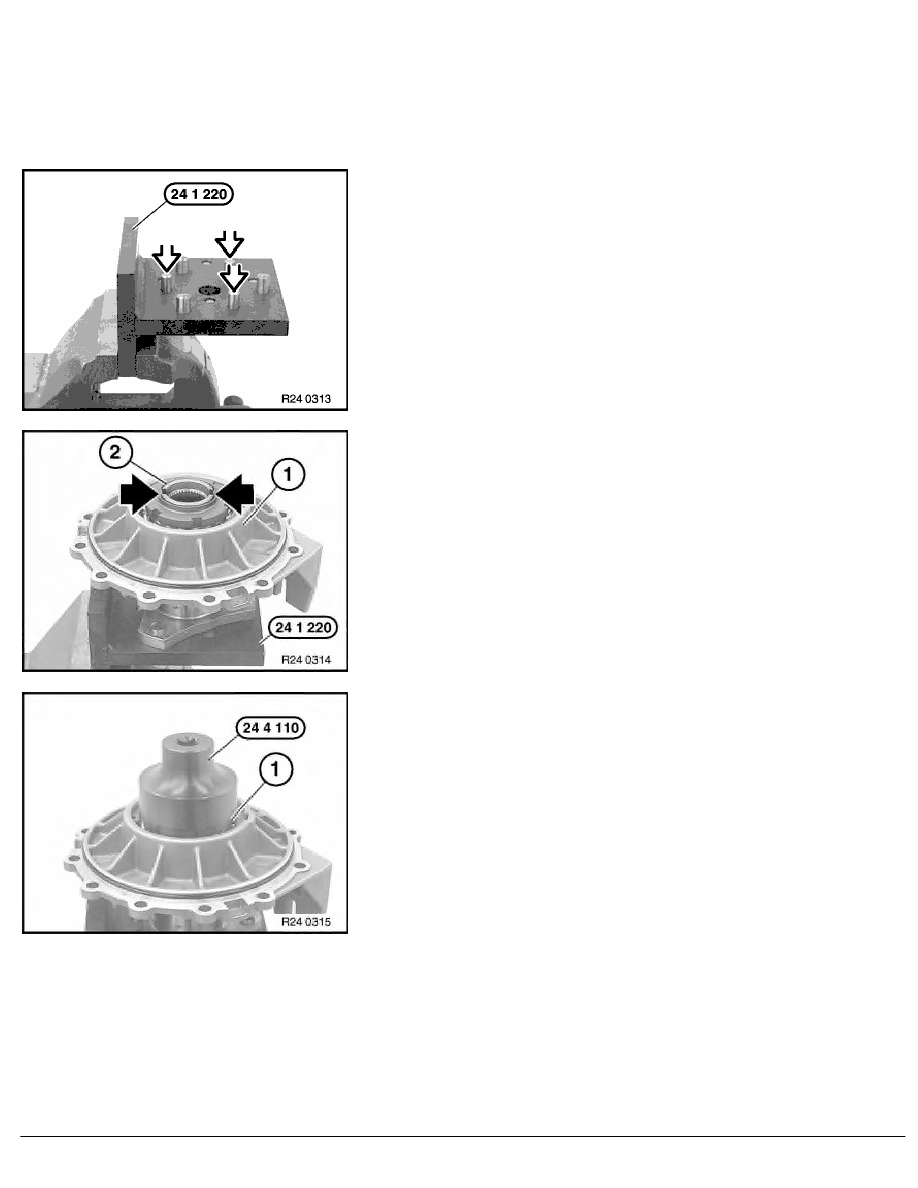

Pull transmission extension (1) off output flange (2).
Installation:
Coat sealing lips on radial seal and sealing face of output
flange with automatic transmission fluid.
Lever out the radial oil seal (1).
Press new radial seal with special tool 00 5 500 / 24 4 090 to
limit position in the transmission extension (1).
RA Replacing radial seal for output flange (A5S 440Z)
