7 Series E38 740iL (M62) SAL

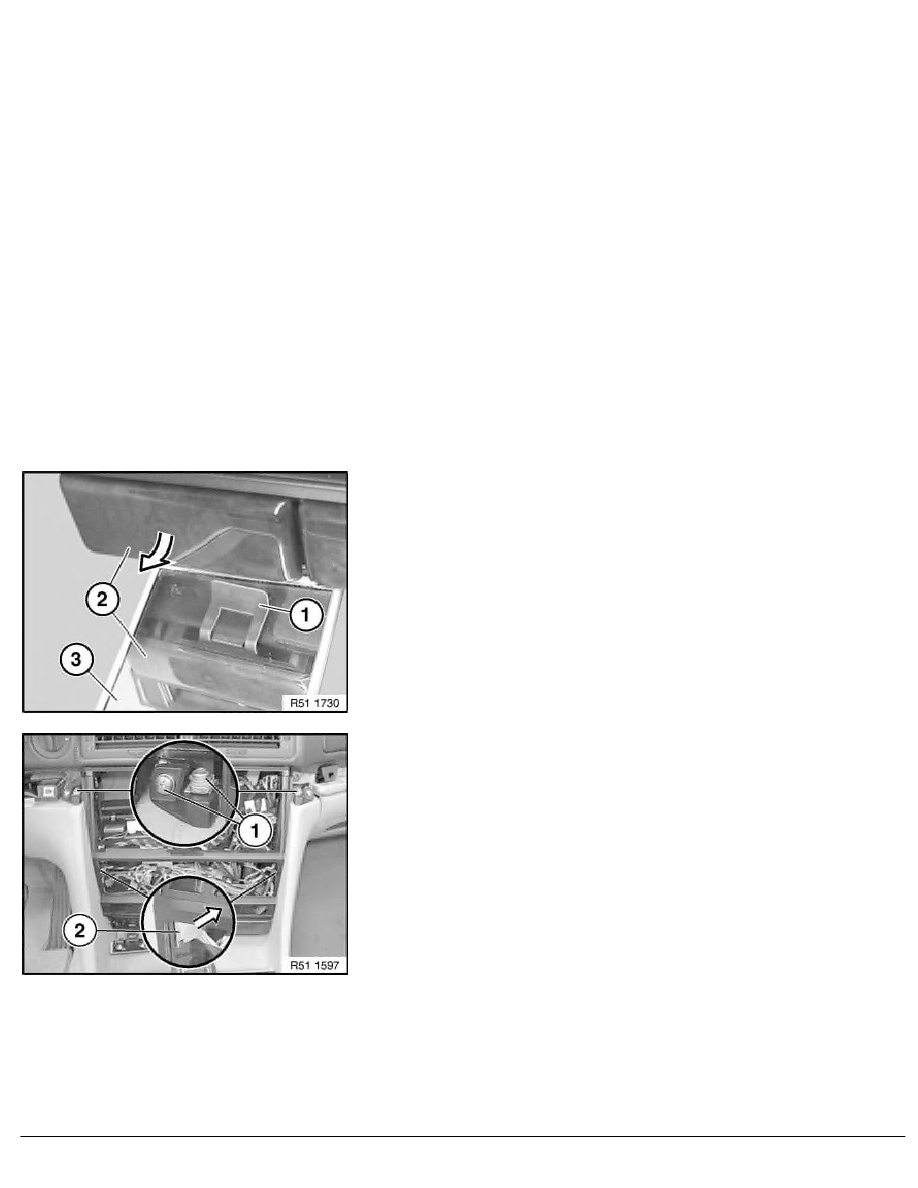

Release screw (1) above opening of detached trim (2).
Open cup holder (1).
Release screw (2) underneath cup holder cover.
Unhook and remove retaining strap from trim (1).
Note:
When removing function carrier (2), under no circumstances
damage side of storage shelf (3).
First lift out function carrier (1)
on passenger side (2),
unscrew a little,
then lift out on driver's side (3)
and remove.
RA Removing and installing/replacing front cup holder
