7 Series E38 740iL (M62) SAL

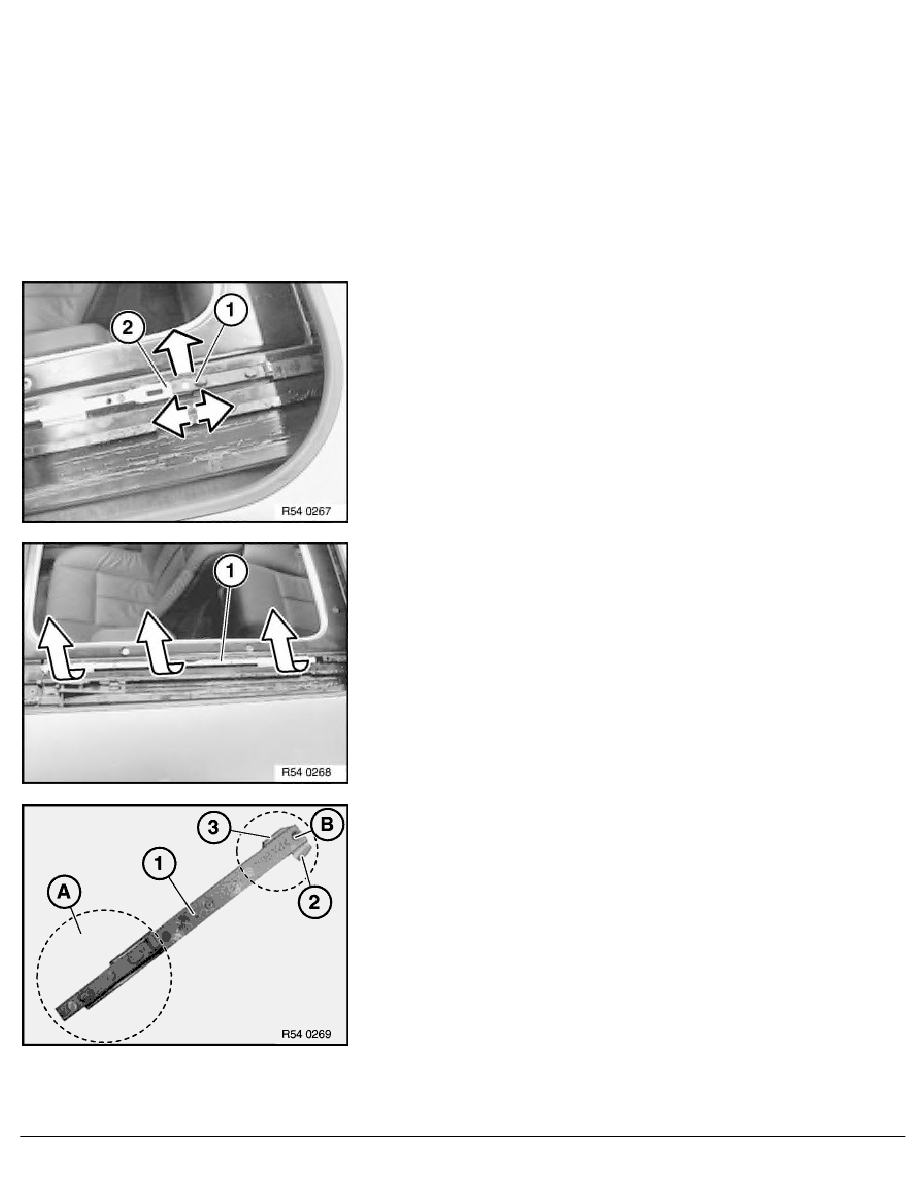

Lift out guide in area (A) of flexible lock (1).
Press flexible lock (1) upwards and simultaneously slide
downwards into installation aperture (2) (clear resistance).
Note:
The following work steps on the flexible lock must be carried
out at the same time.
1.
Press upwards/outwards
2.
Move back and forth
3.
Gently pull forwards
Installation of "flexible lock" (left side only):
Note:
For a better depiction, installation is described for a glass
sunroof which has been removed.
RA Removing and installing / replacing roof lining frame mechanism for glass slidin
