7 Series E38 740iL (M62) SAL

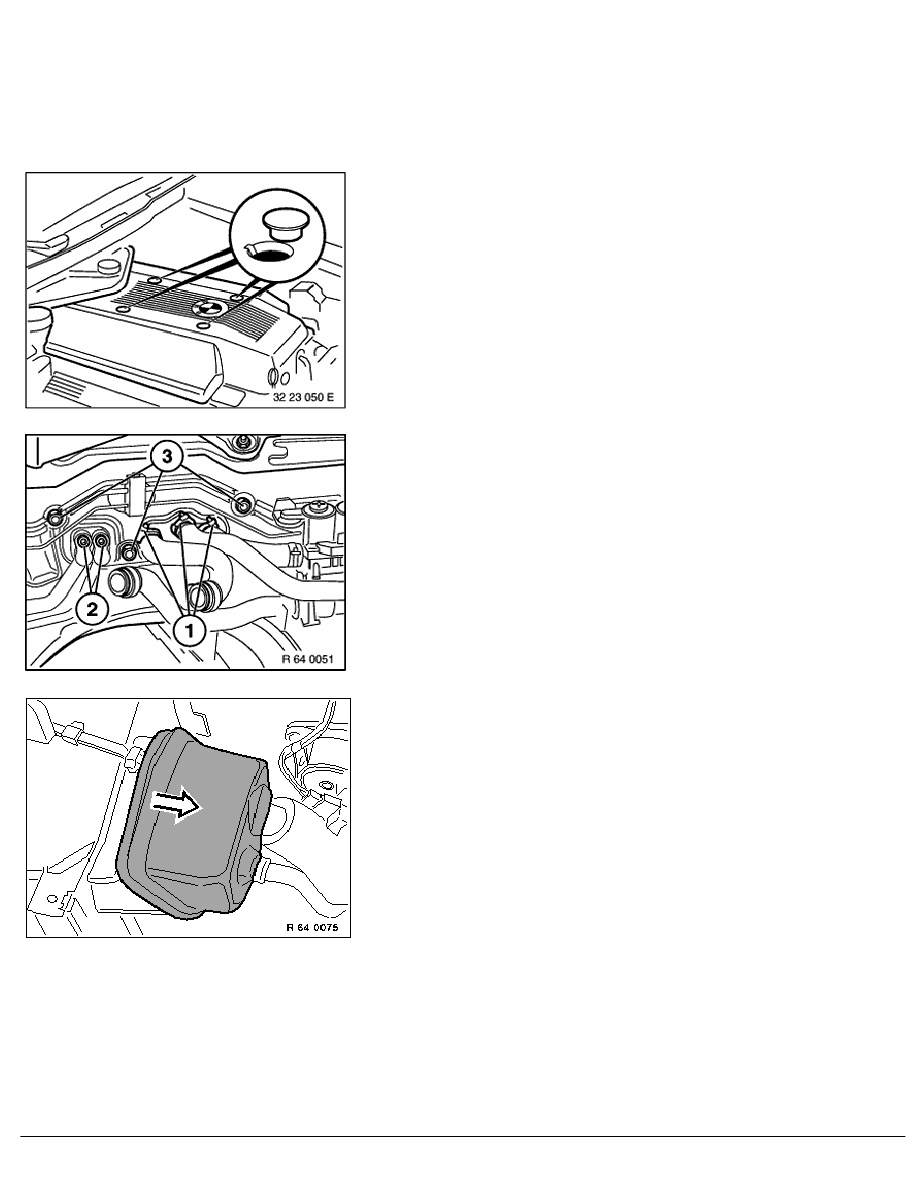

On models with a screw connection on underside of double pipes,
heater/air conditioner unit must be removed,
refer to 64 51 524
Unfasten screw and fold up bracket.
On models with screw connection on side of double pipes,
unfasten screw and fold bracket forwards.
Unfasten screw and pull back pipes.
Installation:
Replace O-rings.
Unfasten screws and remove expansion valve.
Installation:
Replace O-rings.
RA Removing and installing / replacing expansion valve (air-conditioning)
BMW AG - TIS
18.02.2013 12:16
Issue status (12/2007) Valid only until next DVD is issued
