7 Series E66 730Li (N52) SAL
18 00 020
Removing and installing complete exhaust
system (N52)
Special tools required:
•
31 2 220
Warning!
Scalding hazard!
Only perform these tasks after exhaust system has cooled
down.
Danger of injury!
Removal of the exhaust system must be carried out with the
assistance of a second person.
Weight of exhaust system is approx. 50 kg.

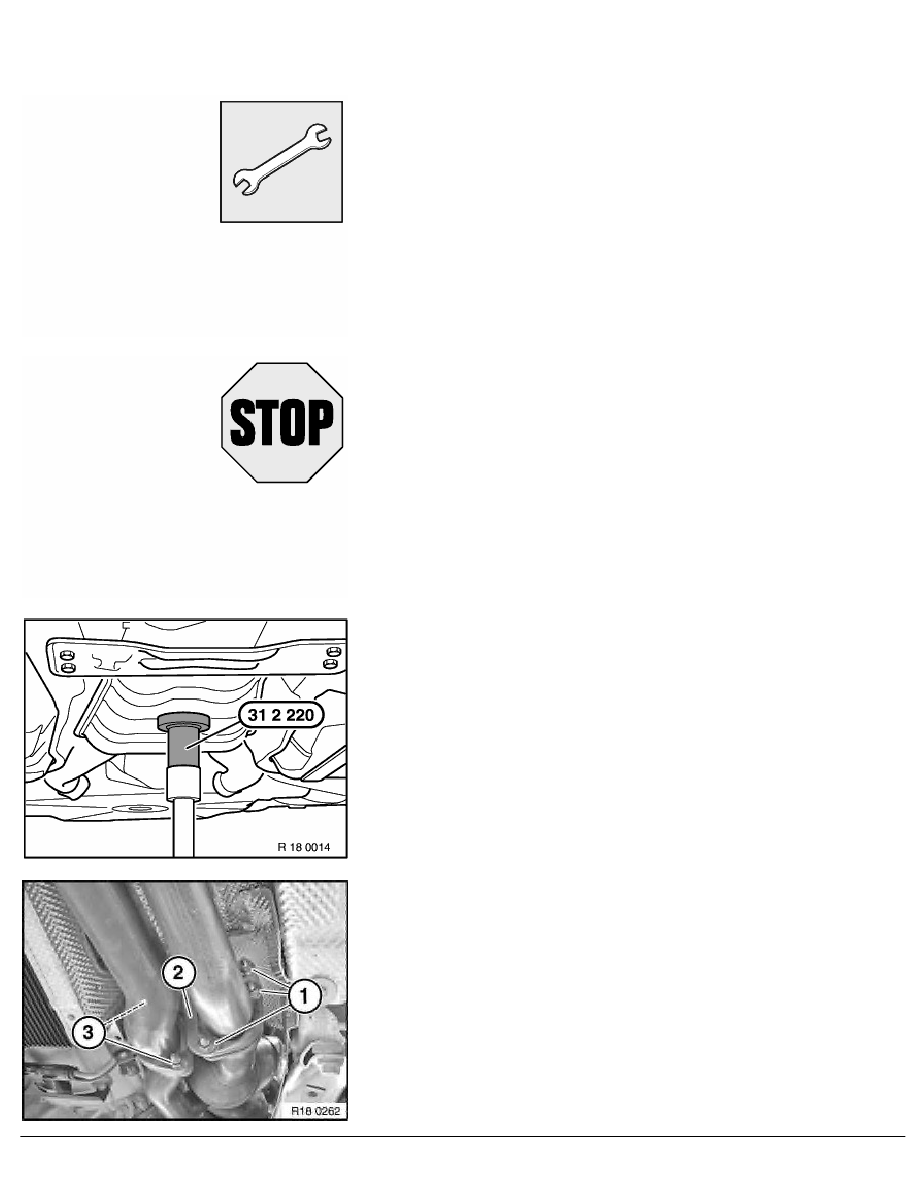

Support exhaust system with special tool 31 2 220 .
Unscrew nuts (1).
Tightening torque 18 20 1AZ
.
Remove retaining plate (2).
Unscrew nuts (3).
Tightening torque 18 20 1AZ
.
RA Removing and installing complete exhaust system (N52)
BMW AG - TIS
07.02.2013 00:40
Issue status (12/2007) Valid only until next DVD is issued
