Shift Lever Removal and Installation for E53 X5 30d (M57) - Manual Transmission
25 11 000

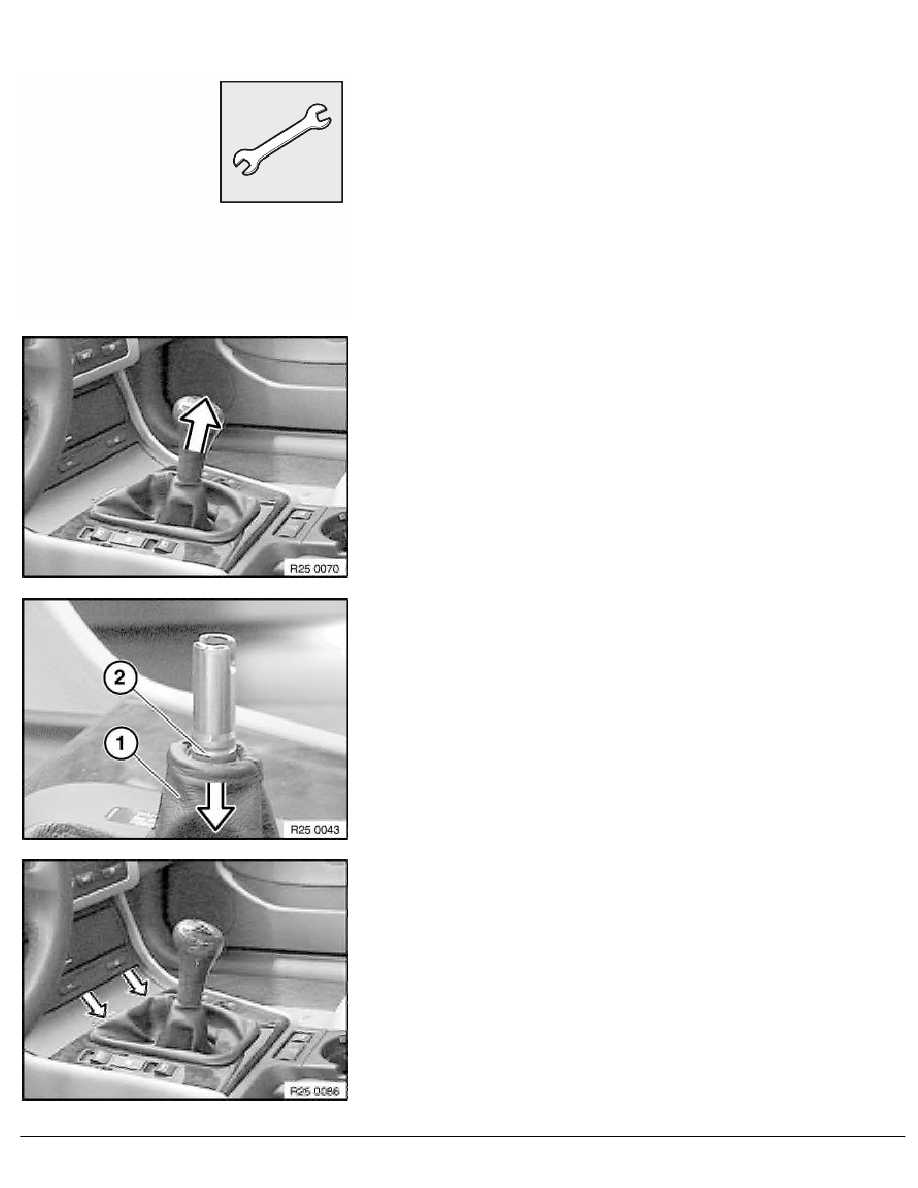

Removing and installing shift lever
Special tools required:
•
25 1 100
Note:
Do not twist knob during removal as this would cause the
turning lock in the knob to shear off.
Tug firmly to remove knob.
Installation:
Fit knob on selector lever, align and press on until it snaps
noticeably into place.
Installation:
Push rubber gaiter (1) down until groove (2) is fully exposed.
Press installation frame of rubber gaiter together slightly.
Remove rubber gaiter from center console.
RA Removing and installing shift lever
