X Series E53 X5 3.0i (M54) OFFRD

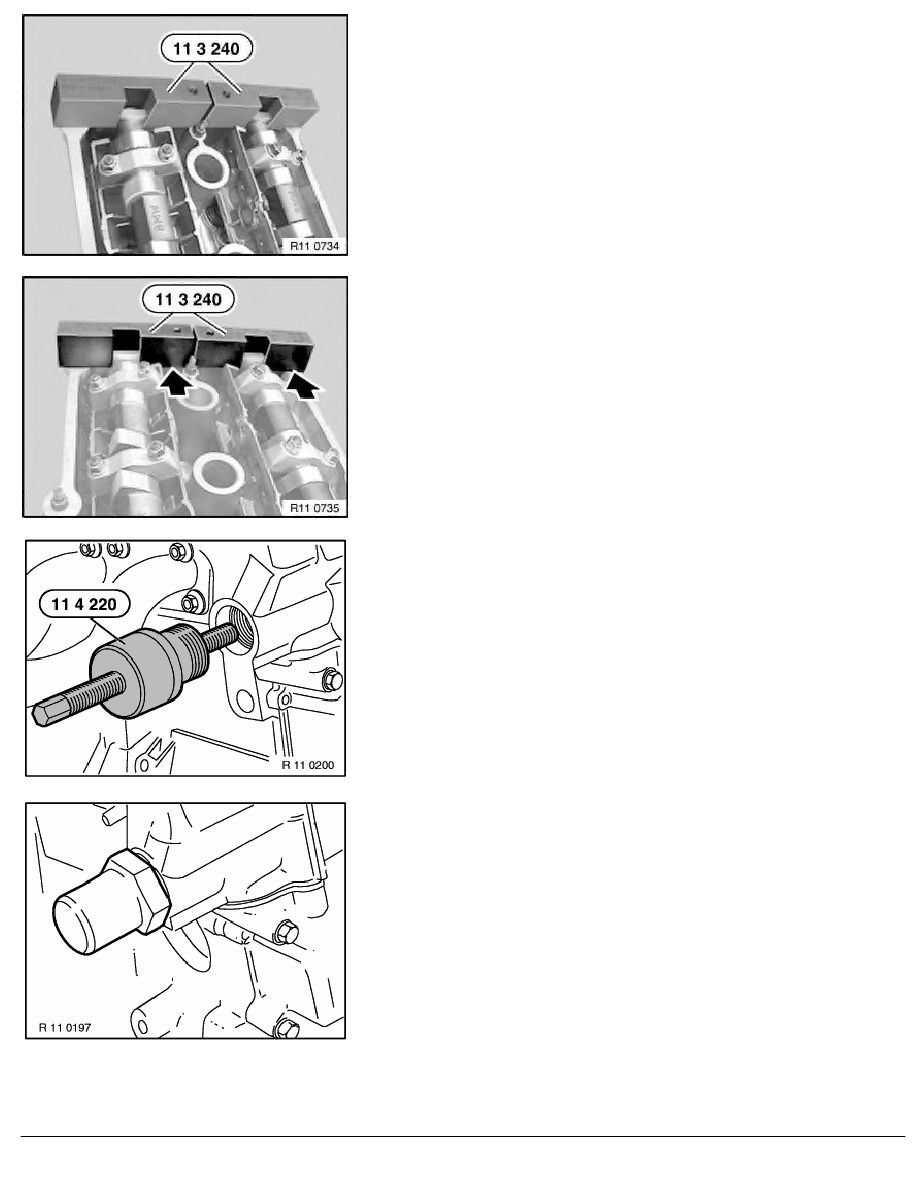

Fit special tool 11 3 240 to camshafts.
Note:
The timing is correctly set if the special tool 11 3 240 rests
without a gap on the cylinder head or protrudes up to 1 mm to the
inlet side.
The timing must be reset if the special tool 11 3 240 protrudes
to the exhaust side.
Unfasten and remove special tool 11 4 220 .
Install cylinder for chain tensioning piston.
RA Adjusting camshaft timing (M52TU / M54 / M56)
