X Series E70 X5 3.0Sd (M57T2) OFFRD
22 11 001
Replacing right engine mount (M57T2)
Necessary preliminary tasks:
•
Secure engine in installation position
•
Remove reinforcement plate
•
Remove heat shields
•
Remove engine support arm.

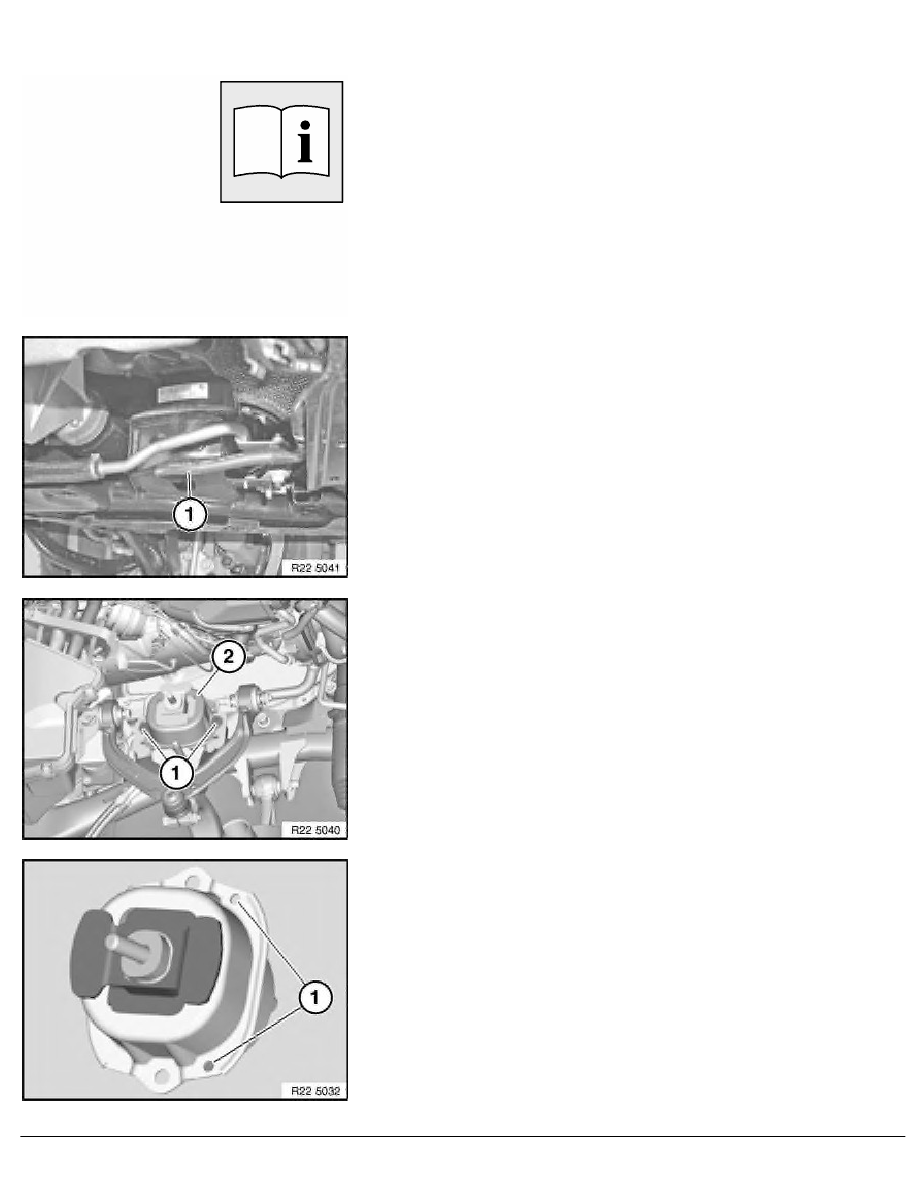

Detach vacuum hose (1) from engine mount.
Release screws (1) and remove engine mount (2).
Tightening torque 22 11 1AZ
.
Installation:
Holes (1) in engine mount must point to middle of vehicle.
RA Replacing right engine mount (M57T2)
BMW AG - TIS
05.02.2013 03:21
Issue status (12/2007) Valid only until next DVD is issued
