X Series E83 X3 2.5Si (N52K) OFFRD

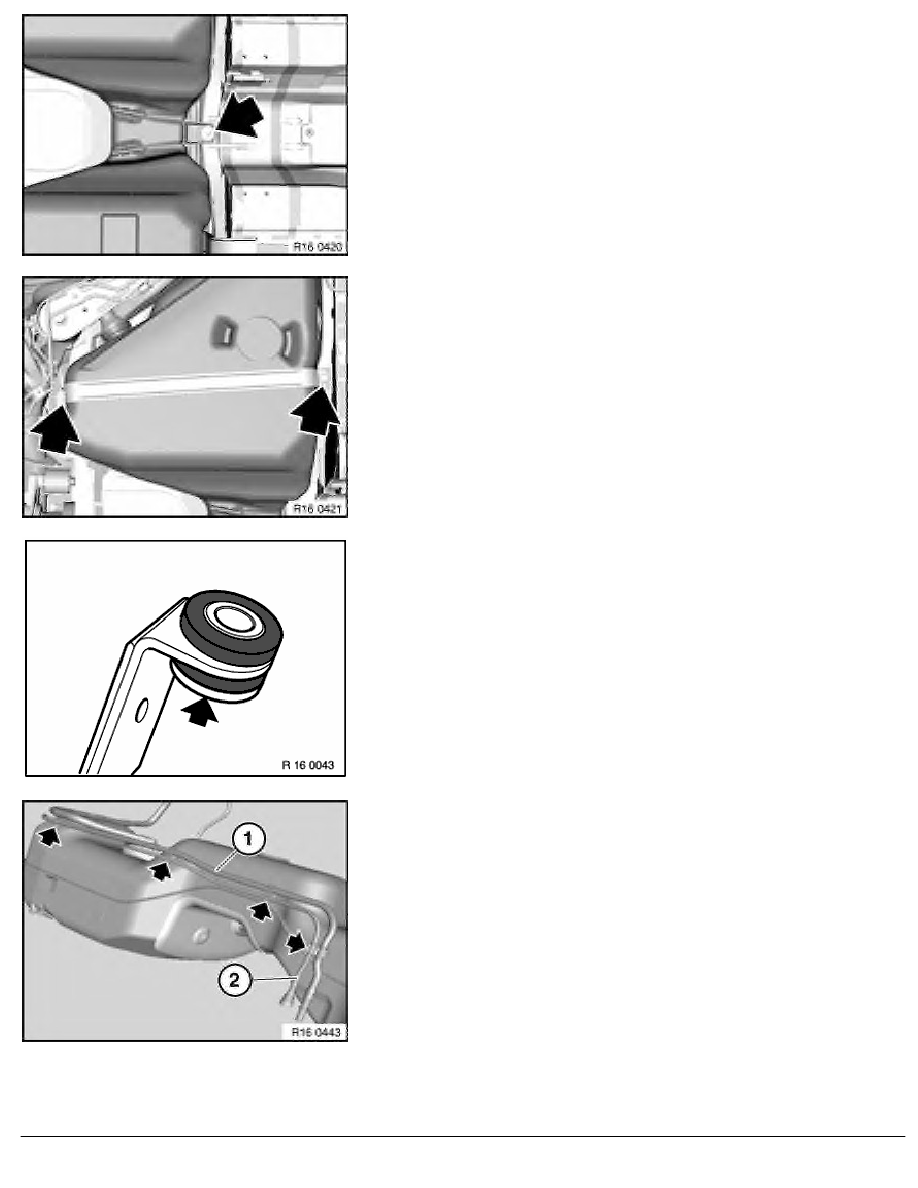

Release screw.
Installation:
Tightening torque, 16 11 1AZ
.
Release screws for tightening straps on left and right and remove
tightening straps.
Installation:
Tightening torque, 16 11 1AZ
.
Installation:
Note rubber mount with spacer bush.
Wide collar on spacer bush points to screw head.
Important!
Risk of damage: Feed out fuel line (2).
Do not kink fuel line.
Lower tank until line (1) is accessible.
Unclip line (1) from holders.
Remove fuel tank downwards.
Note:
Illustration shows: tank removed.
RA Removing and installing/replacing fuel tank
