X Series E83 X3 2.5Si (N52K) OFFRD

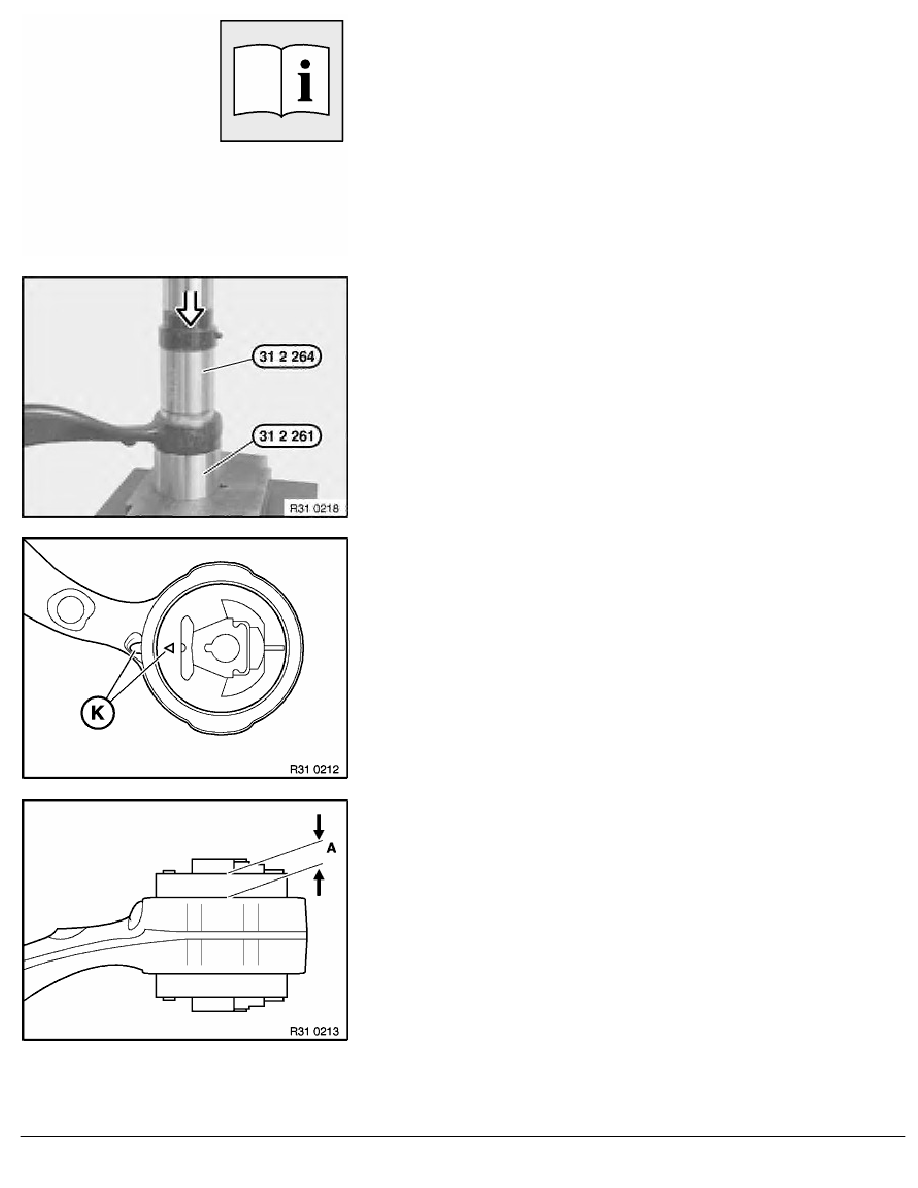

Replacing rubber mount:
Remove both tension struts.
Using a press and special tools 31 2 261 and 31 2 264 ,
press rubber mount out of tension strut.
Note:
Special tool 31 2 264 must be exactly flush with rubber mount
bushing.
Installation:
Keep rubber mount and bushing in tension strut clean and free
from grease.
Align rubber mounts to each other using markings (K) and press
in. The deviation must not exceed
±
3
°
.
Installation:
Protrusion (A) = 12.5
±
0.7 mm
RA Replacing rubber mounts on both tension struts
