X Series E83 X3 2.5Si (N52K) OFFRD

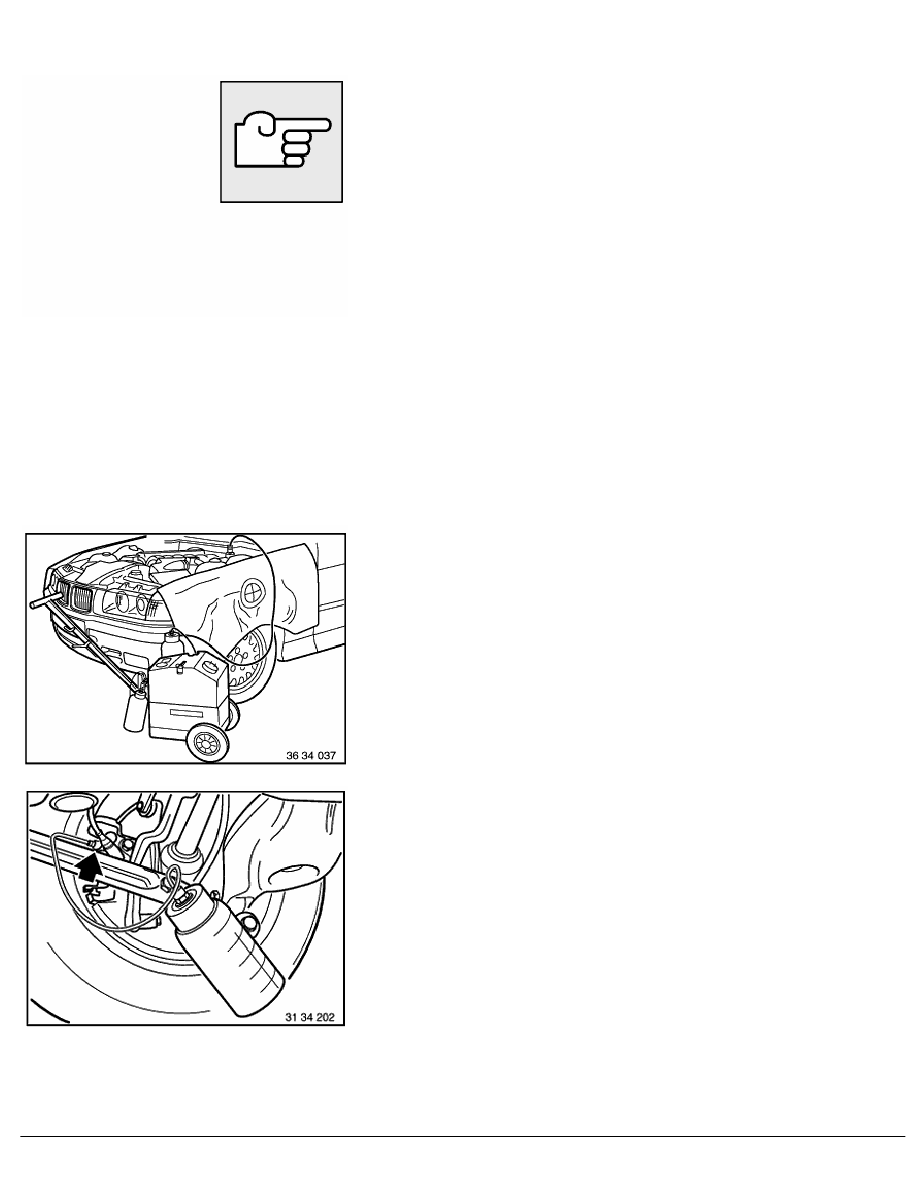

Bleeding rear-axle brake circuit
Connect bleeder hose with collecting tray to bleeder valve on rear
right brake caliper.
Close bleeder valve.
Run bleeding routine with DIS with bleeder valve open.
After completing routine, press brake pedal 5 times to floor; clear
and bubble-free brake fluid must flow out.
Close bleed valve.
Repeat procedure at rear left.
Bleeding front-axle brake circuit
Connect bleeder hose with collecting tray to bleeder valve on front
right brake caliper.
Close bleeder valve.
Run bleeding routine with DIS with bleeder valve open.
After completing routine, press brake pedal 5 times to floor, clear
and bubble-free brake fluid must flow out.
Close bleed valve.
Repeat procedure at front left.
Switch off bleeder unit and remove from expansion tank.
Check brake fluid level. If necessary, top up/draw off to max. level.
Close expansion tank.
Note:
Pay attention to rubber seal (1) in sealing cap.
RA Bleeding brake system with DSC
