X Series E83 X3 2.5Si (N52K) OFFRD
35 21 000
Removing and installing/replacing brake
pedal
Necessary preliminary tasks:
•
Remove pedal trim

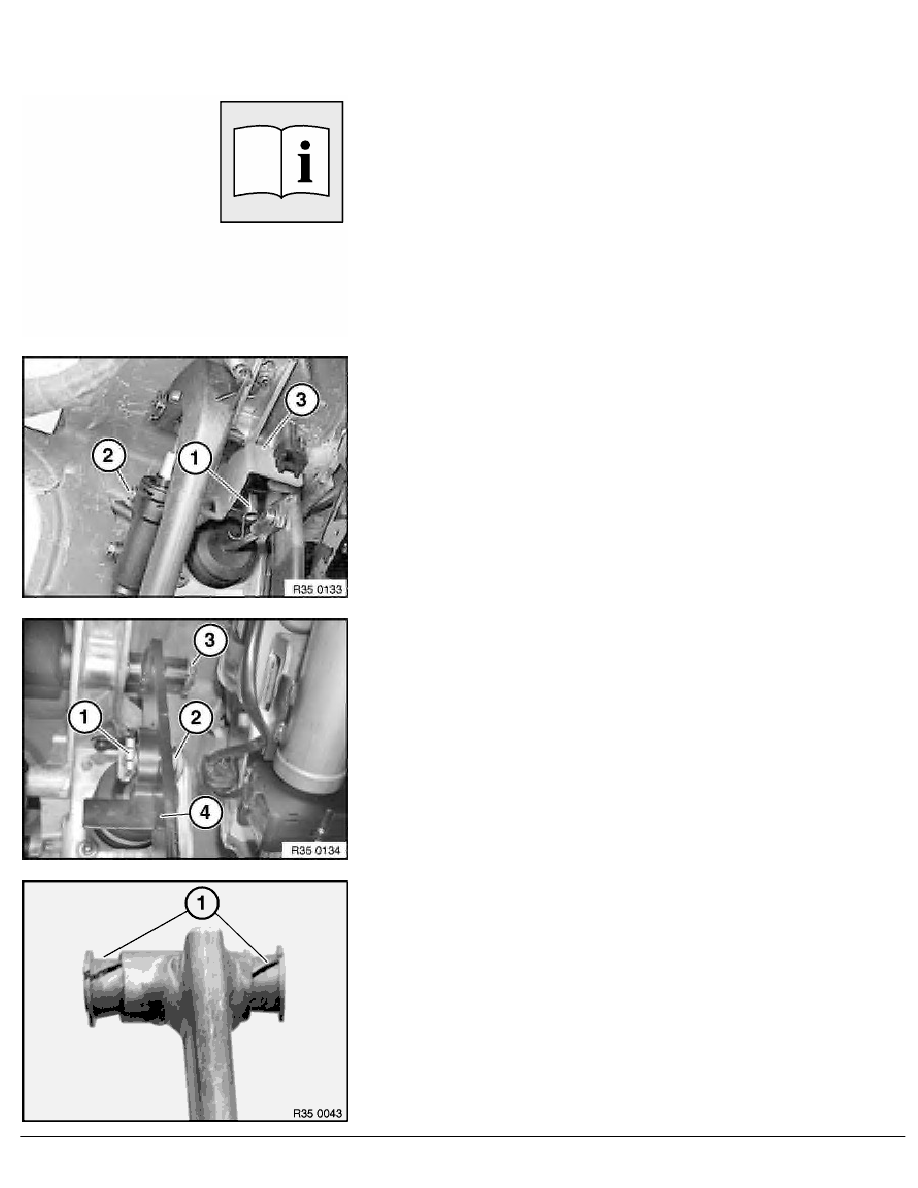

Disconnect return spring (1).
Release screw (2) and remove holder (3).
Remove locking clip (1), disconnect pin (2) and pull out.
Remove locking clip (3) and feed out brake pedal (4).
Installation:
Replace locking clip.
The locking clip must be seated with both legs in the pin groove.
Installation:
Check bearing bushes (1) and replace if necessary.
Lightly grease bearing bushes (1).
RA Removing and installing/replacing brake pedal
BMW AG - TIS
11.02.2013 14:39
Issue status (12/2007) Valid only until next DVD is issued
