X Series E83 X3 2.5Si (N52K) OFFRD

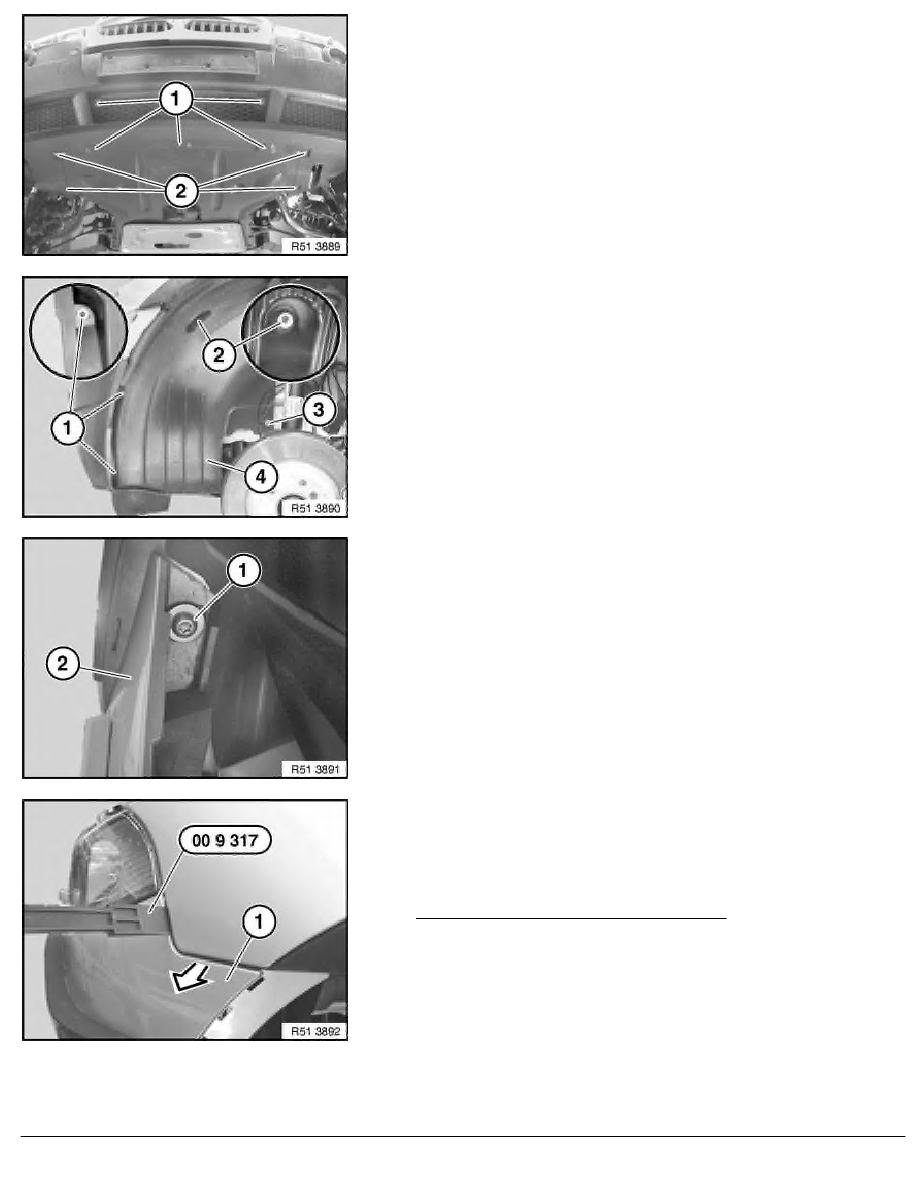

Release screws (1 and 2).
Release screws (1 to 3) on wheel arch trim (4).
Lever out wheel arch trim (4) at side.
Installation:
Make sure wheel arch trim (4) is in correct position.
Release screw (1) on bumper trim (2).
Important!
Do not damage bumper trim when pulling off.
Lever out bumper trim (1) with special tool 00 9 317 in direction
of arrow.
Version without headlight cleaning system:
Pull bumper trim (1) forwards a little.
If necessary, disconnect plug connections on ultrasonic sensors
and/or front fog lamps.
Remove bumper trim (1) towards front with aid of a 2nd person.
RA Removing and installing front bumper trim (up to 09/2006)
