X Series E83 X3 2.5Si (N52K) OFFRD

Page 2
background image

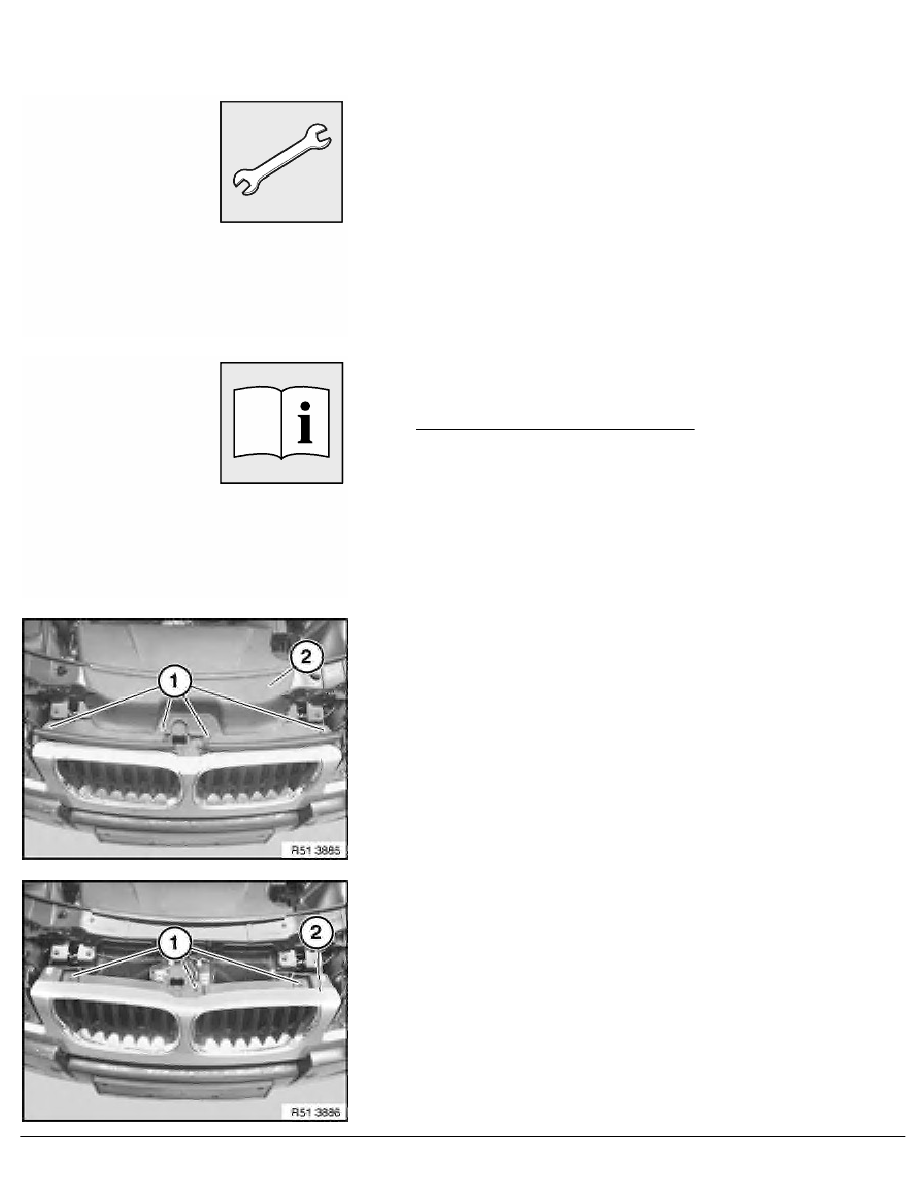

Release screws (1 and 2).

Release screws or rivets (1 to 3) on wheel arch trim (4).

Lever out wheel arch trim (4) at side.

Installation:

Make sure wheel arch trim (4) is in correct position.

Release screw (1) on bumper trim (2).

Important!

Do not damage bumper trim when pulling off.

Lever out bumper trim (1) with special tool  00 9 317  in direction
of arrow.

Pull bumper trim (1) forwards a little.

If necessary, disconnect plug connections on ultrasonic sensors
and/or front fog lamps.

Remove bumper trim (1) towards front with aid of a 2nd person.

RA  Removing and installing/replacing front bumper trim (M Technic aerodynamic kit)

BMW AG - TIS

11.02.2013  16:16

Issue status (12/2007) Valid only until next DVD is issued
