X Series E83 X3 2.5Si (N52K) OFFRD

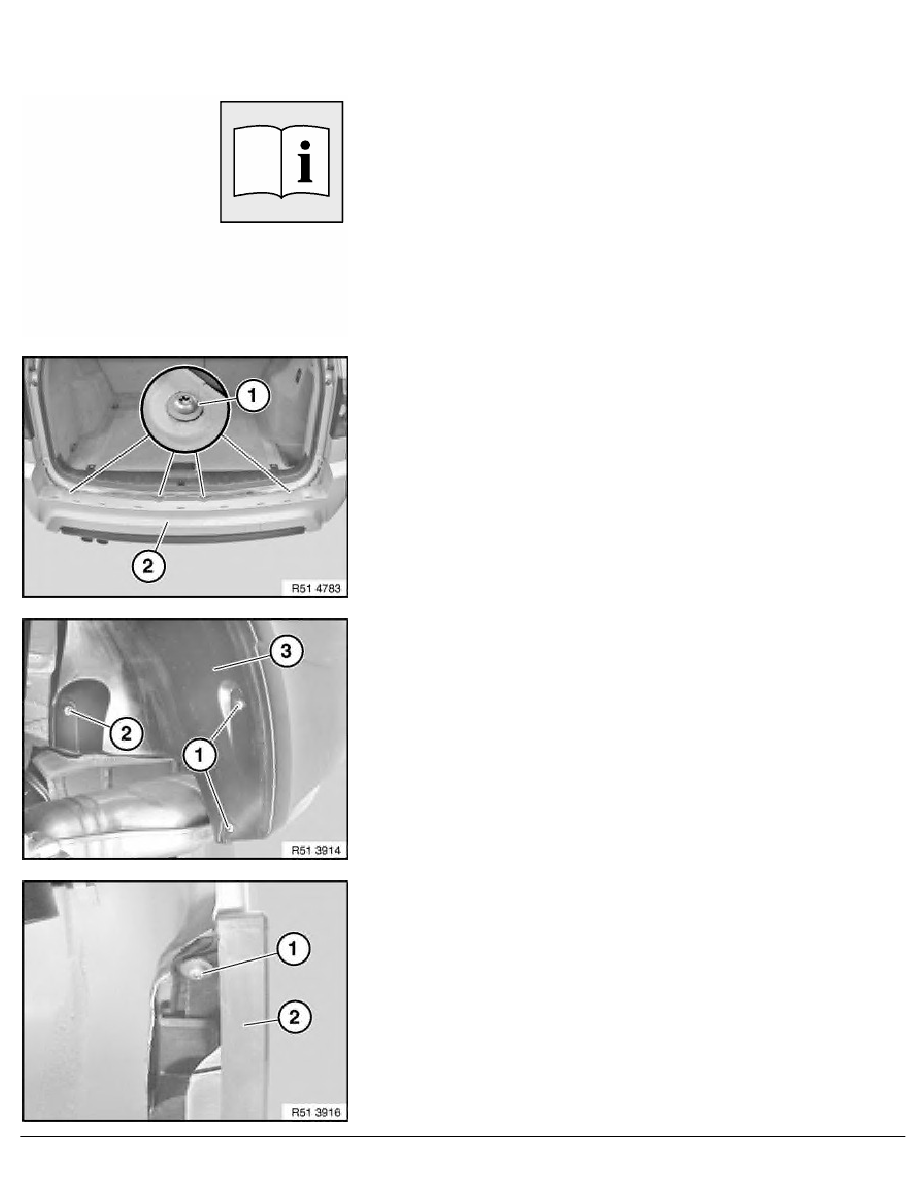

Release screws (1) on bracket (2).
Release screw (1).
Release nuts (2) and feed bracket out of stud.
Important!
Risk of damage!
Do not detach bumper trim (1) at sides in outward direction.
Pull off bumper trim (1) for side panel in direction of arrow.
Pull out bumper trim (1) in direction of arrow and remove with aid
of a 2nd person.
Note:
Version with Park Distance Control:
If necessary, pull off bumper trim (1) a little and disconnect plug
connections of ultrasonic transducers (2).
RA Removing and installing/replacing rear bumper trim (M Technic aerodynamic kit)
