X Series E83 X3 2.5Si (N52K) OFFRD

Page 3
background image

Note:

For purposes of clarity, the following illustrations show the
front/rear floor panelling removed.

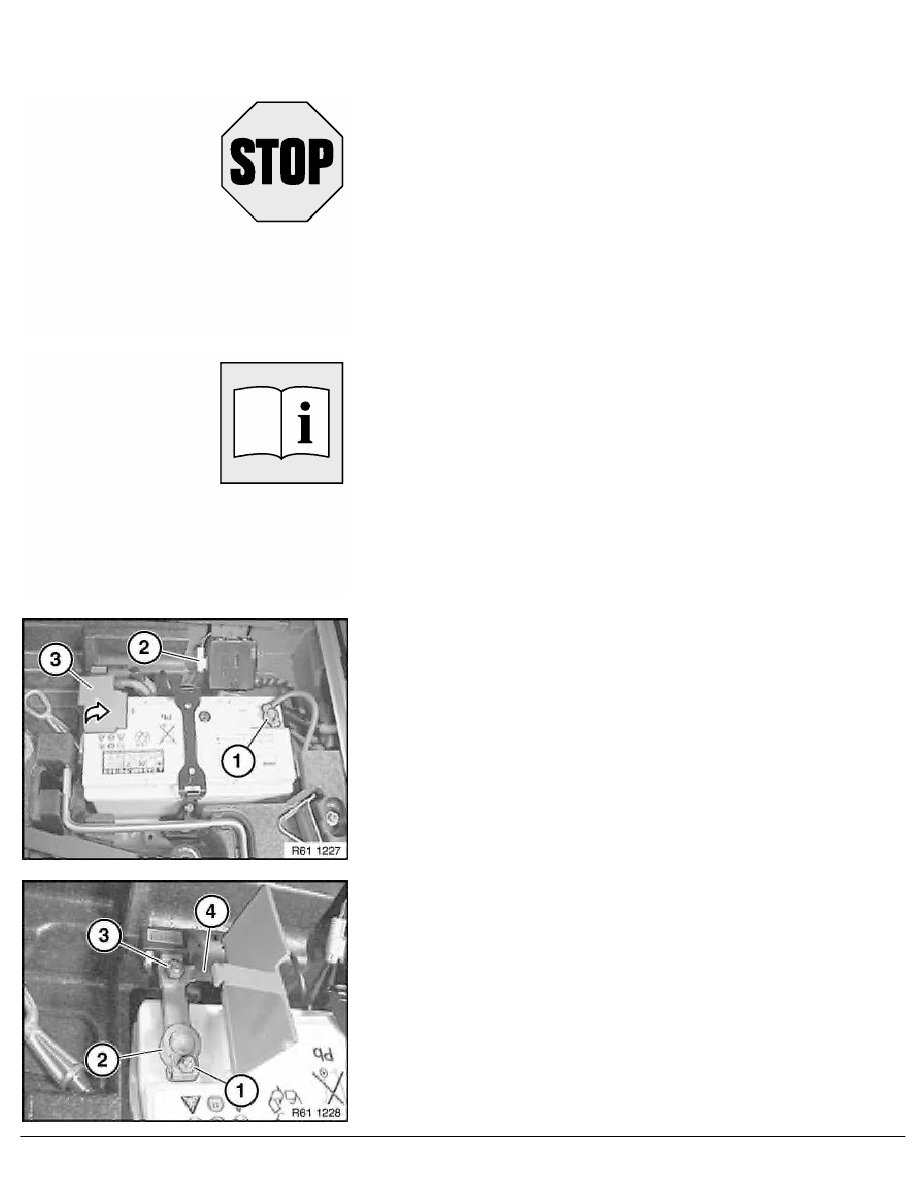

Raise front/rear floor panelling in area of battery positive lead.

Remove front insert (1).

Remove battery positive lead (1) from cable guides (2).

Detach battery positive lead (1) from cable guides (2) and
remove.

RA  Replacing battery positive lead (from battery to engine compartment partition co

BMW AG - TIS

11.02.2013  20:13

Issue status (12/2007) Valid only until next DVD is issued
