X Series E83 X3 2.5Si (N52K) OFFRD
61 35 177
Removing and installing (replacing) rain/light
sensor

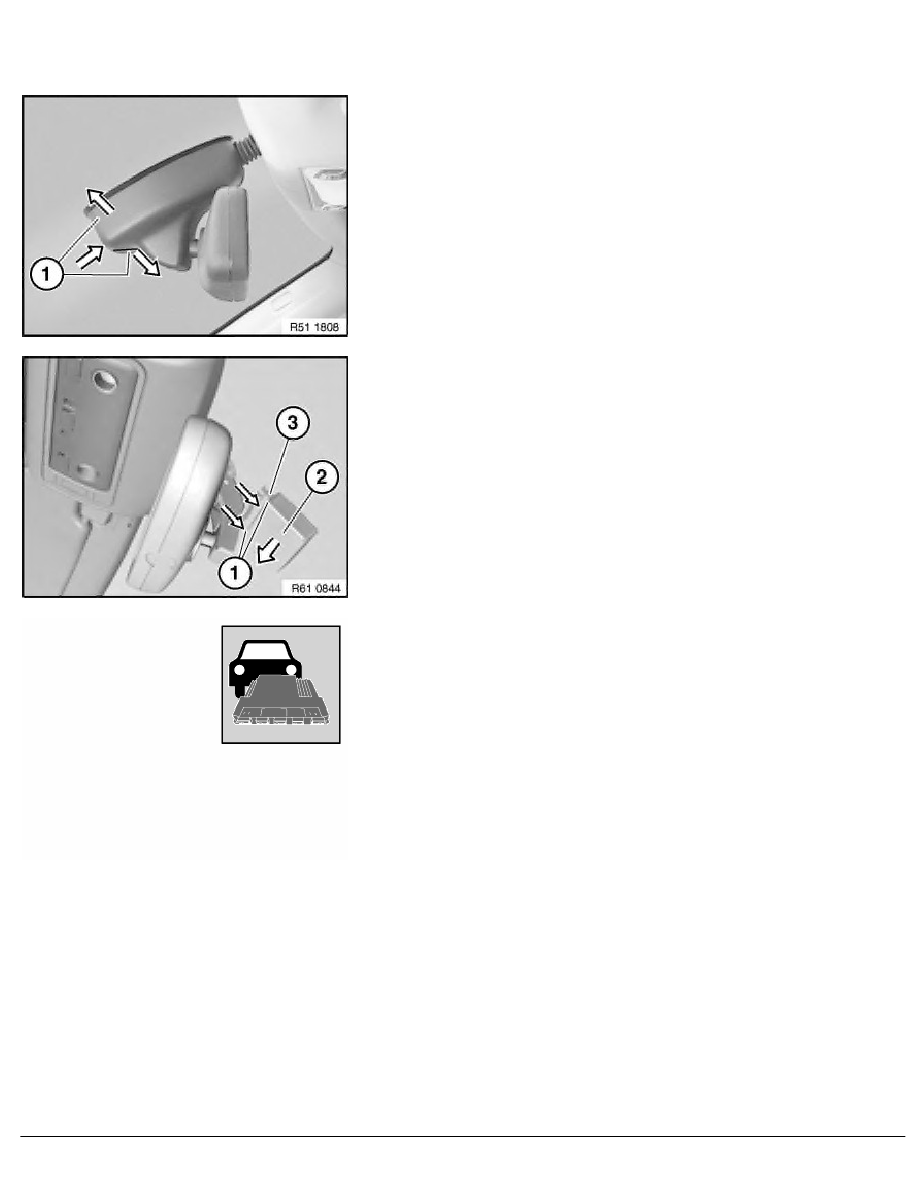

Expand two-part mirror base cover (1) by pressing from below
and detach.
Feed out two-part mirror base cover (1) and remove.
Disconnect plug connection (3).
Press locks (1) in direction of arrow and remove rain/light
sensor (2) towards bottom.
Installation:
Do not damage optical element covered by rain/light sensor (2).
If necessary, initialise rain/light sensor.
Replacement:
Carry out programming/coding.
RA Removing and installing (replacing) rain/light sensor
