X Series E83 X3 2.5Si (N52K) OFFRD
63 25 000
Removing and installing/replacing auxiliary
brake light
Necessary preliminary tasks:
•
Remove rear spoiler

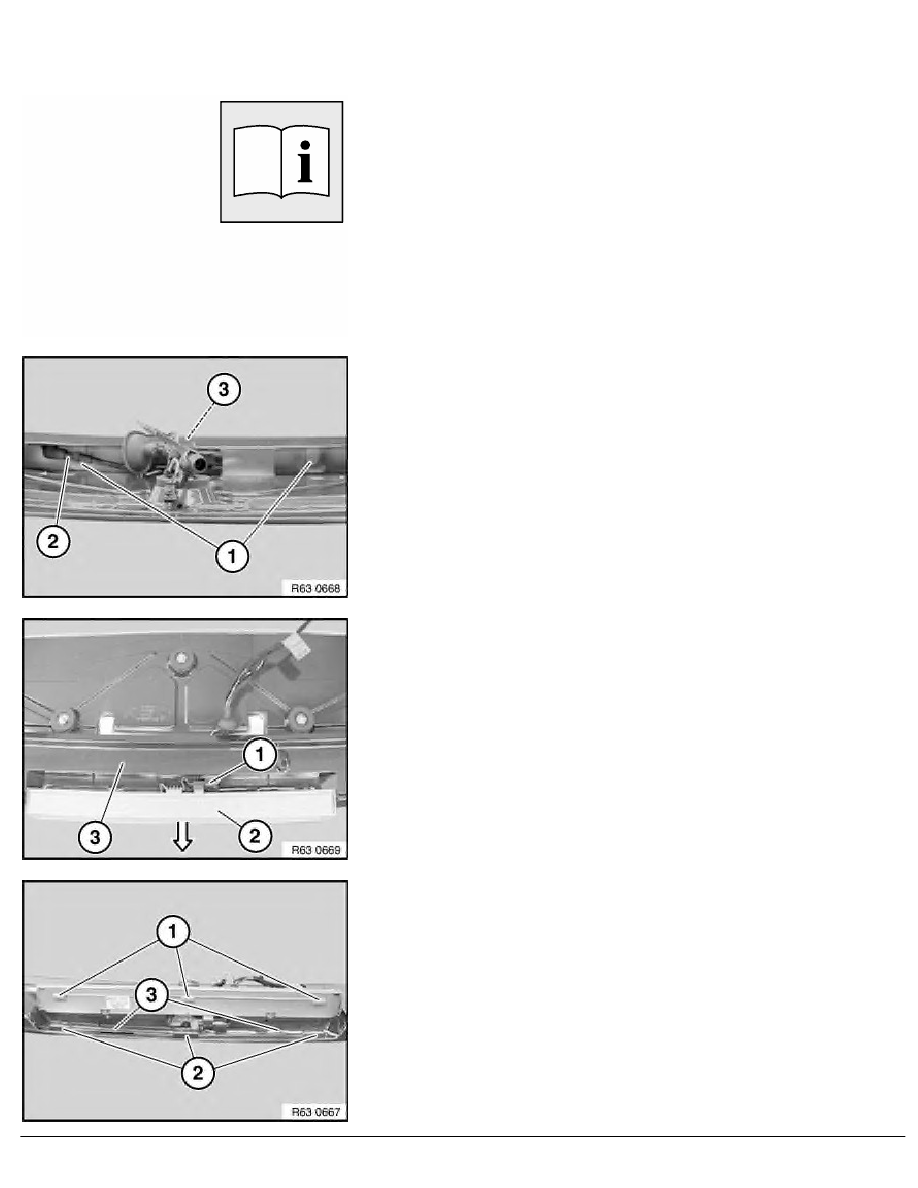

Release screws (1). Tightening torque
63 21 5AZ
.
Installation:
Make sure hose (2) is correctly seated.
Slide additional stop light (3) slightly towards rear out of rear
spoiler.
Disconnect plug connection (1).
Feed auxiliary brake light (2) in direction of arrow out of rear
spoiler (3).
Installation:
Guides (1) must be exactly seated in locators (2).
Make sure wiring harness (3) is laid correctly.
RA Removing and installing/replacing auxiliary brake light
