LaCrosse V8-5.3L (2008)
5. Remove the drive belt (1) from over the power steering pump pulley.
6. Slowly release the EN-47988.
7. Remove the EN-47988 from the belt tensioner.
8. Remove the drive belt (1) from around all the other pulleys.
9. Clean and inspect the belt surfaces of all the pulleys.
Installation Procedure
1. Install and route the drive belt around all the pulleys except for the power steering pump pulley.

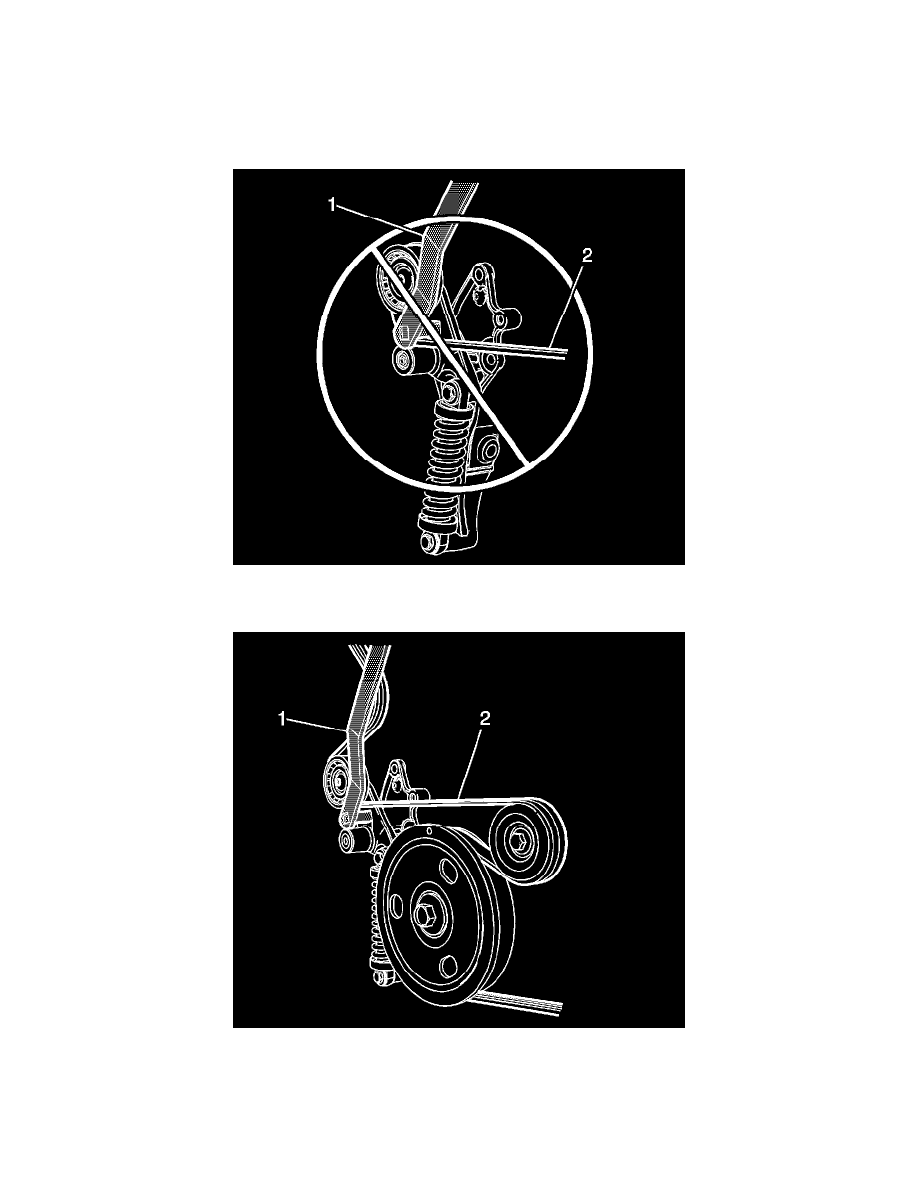

2. Ensure that when installing the EN-47988 (1), to the belt tensioner that the EN-47988 is NOT installed above the drive belt (2).
3. Ensure that when installing the EN-47988 (1), to the belt tensioner that the EN-47988 is installed below the drive belt (2).
4. Rotate the EN-47988 clockwise in order to relieve the tension on the belt tensioner.
5. Ensure that the drive belt is still properly routed around all the other pulleys, then install the drive belt over the power steering pump pulley.
6. Slowly release the EN-47988.
7. Remove the EN-47988 from the belt tensioner.
8. Inspect the drive belt for proper installation and alignment.
