LaCrosse V8-5.3L (2008)
Fuel Filler Hose: Service and Repair
Fuel Tank Filler Pipe Replacement
Removal Procedure
Important: Clean the fuel and evaporative emission (EVAP) connections and surrounding areas prior to disconnecting the lines in order to
avoid possible system contamination.
1. Relieve the fuel system pressure. Refer to Fuel Pressure Relief (With CH 48027) (See: Fuel Filter/Fuel Pressure Release/Service and Repair/Fuel
Pressure Relief (With CH 48027))Fuel Pressure Relief (Without CH 48027) (See: Fuel Filter/Fuel Pressure Release/Service and Repair/Fuel
Pressure Relief (Without CH 48027)).

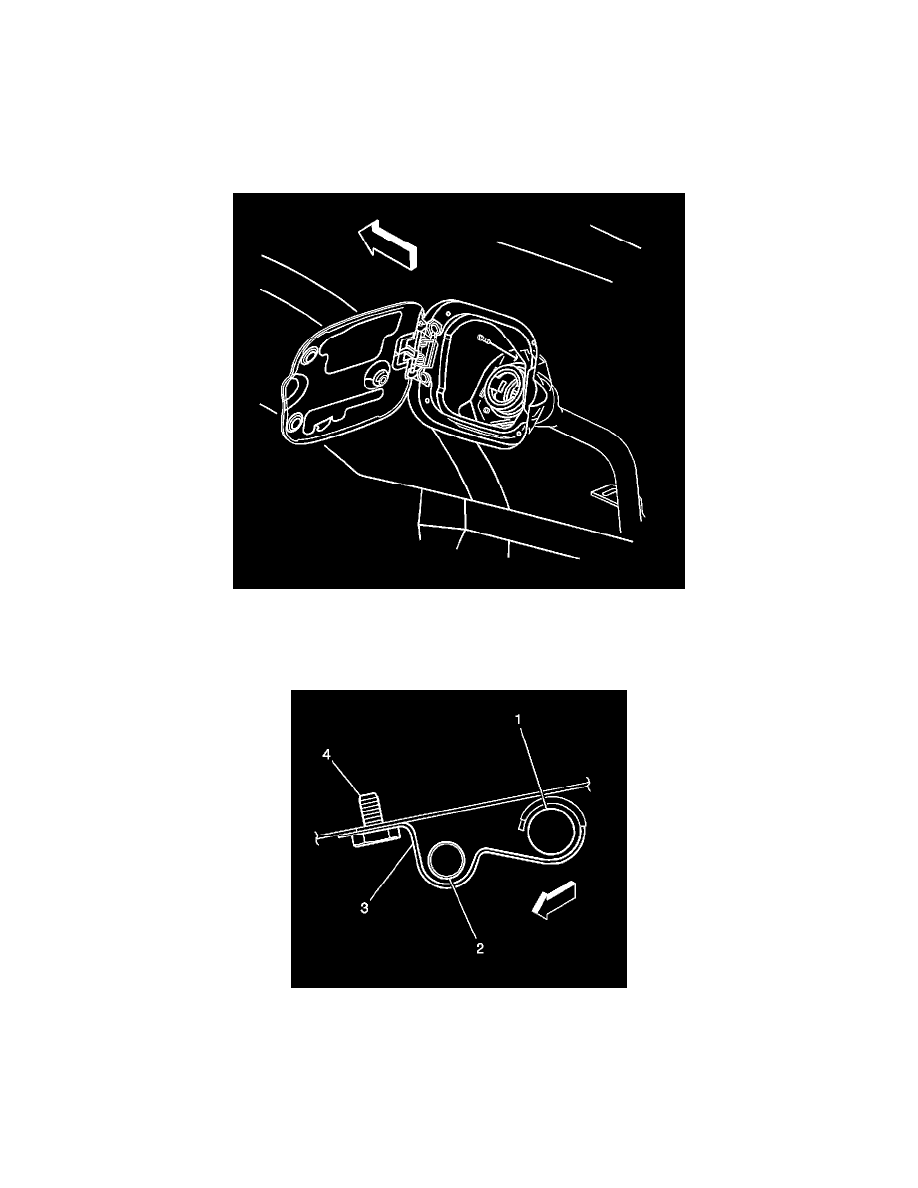

2. Remove the fuel fill pipe screws from the fuel filler pocket.
3. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle (See: Maintenance/Vehicle Lifting/Service and Repair).
4. Remove the fill pipe bracket bolt (4) from the underbody rail.
5. Remove the EVAP line (2) from the bracket (3).
