Backing Plate: Service and Repair
Hub and Bearing Assembly
REMOVAL
-
Raise car and suitably support.
NOTE: Mark relationship of wheel to hub and bearing assembly, to insure proper wheel balance upon reassembly.
-
Remove tire and wheel assembly.
CAUTION: Do not hammer on brake drum as damage to the bearing could result.
-
Remove brake drum. See: Brake Drum
Hub And Bearing Assembly
NOTE: The top rear attaching bolt will not clear the brake shoe when removing the hub and bearing assembly. Partially remove hub and bearing
assembly prior to removing this bolt.
-

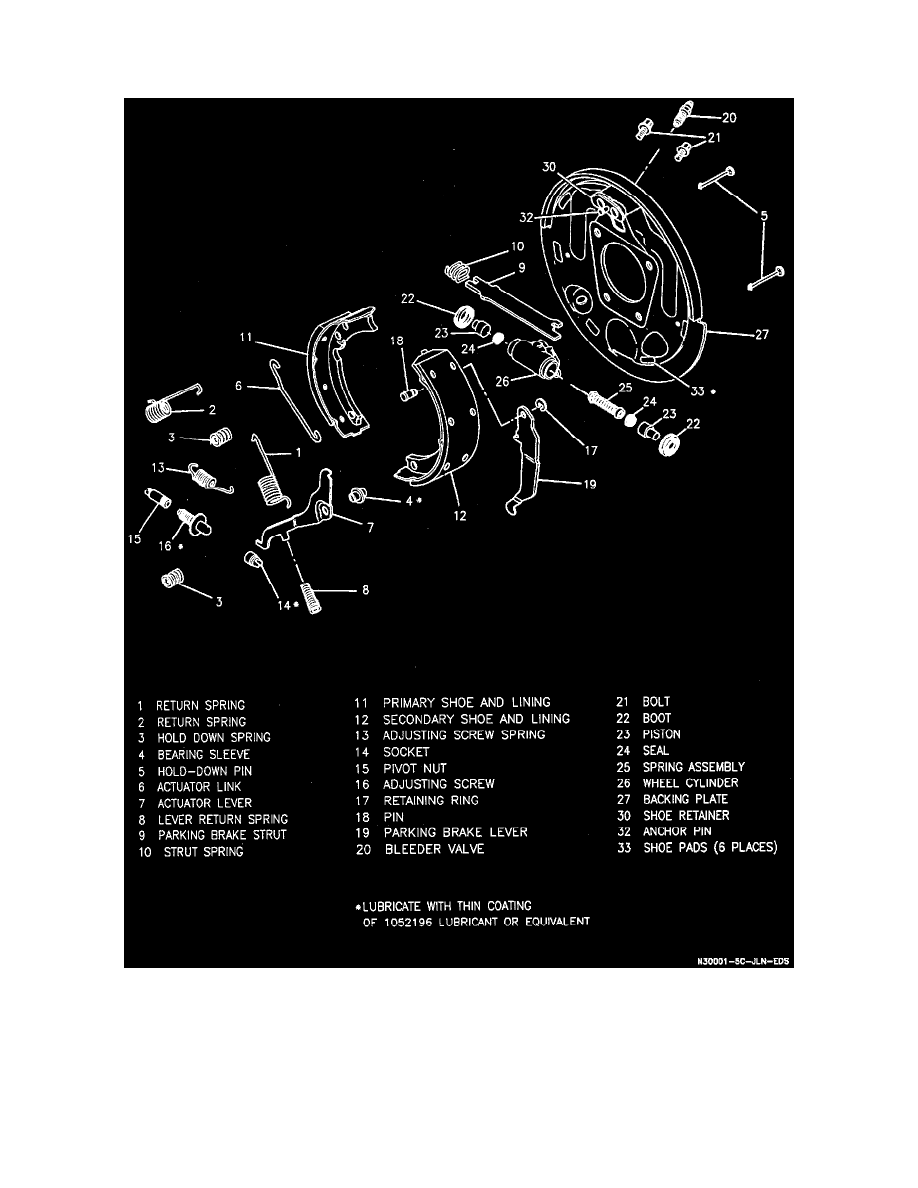

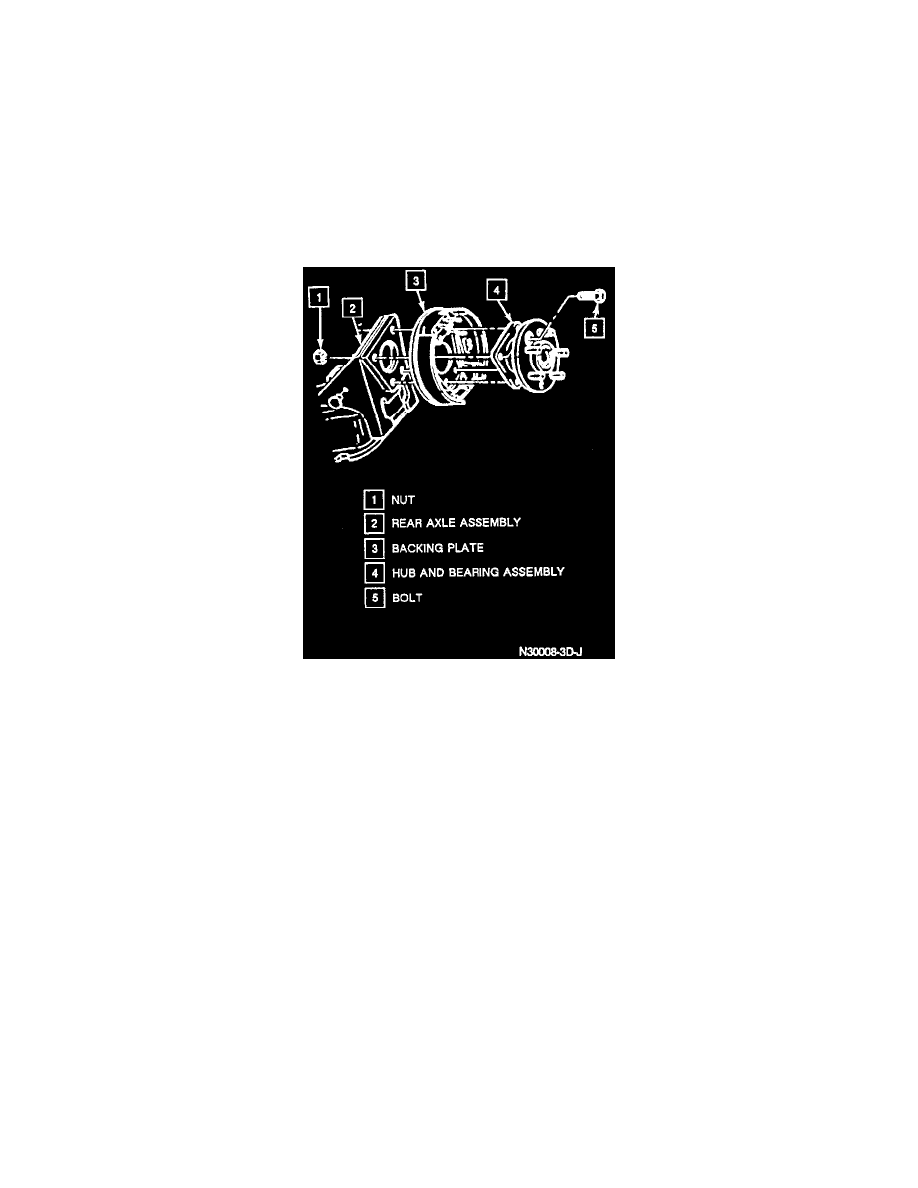

Remove hub and bearing assembly attaching bolts then remove assembly from axle.
-
Remove Anti-Lock Brake (ABS) wheel speed sensor wire connector.
INSTALLATION
-
Install ABS wheel speed sensor wire connector.
NOTE: Position top rear attaching bolt in hub and bearing assembly prior to installing in the axle assembly.
-
Install hub and bearing assembly to rear axle.
-
Tighten hub and bearing bolts to 58 Nm (43 lbs. ft.).
-
Install brake drum. See:
-
Install wheel and tire assembly while noting alignment marks, then lower vehicle and torque wheel nuts to 140 Nm (100 ft. lbs.).
