Skylark L4-138 2.3L SOHC VIN 3 MFI QUAD 4 (1992)

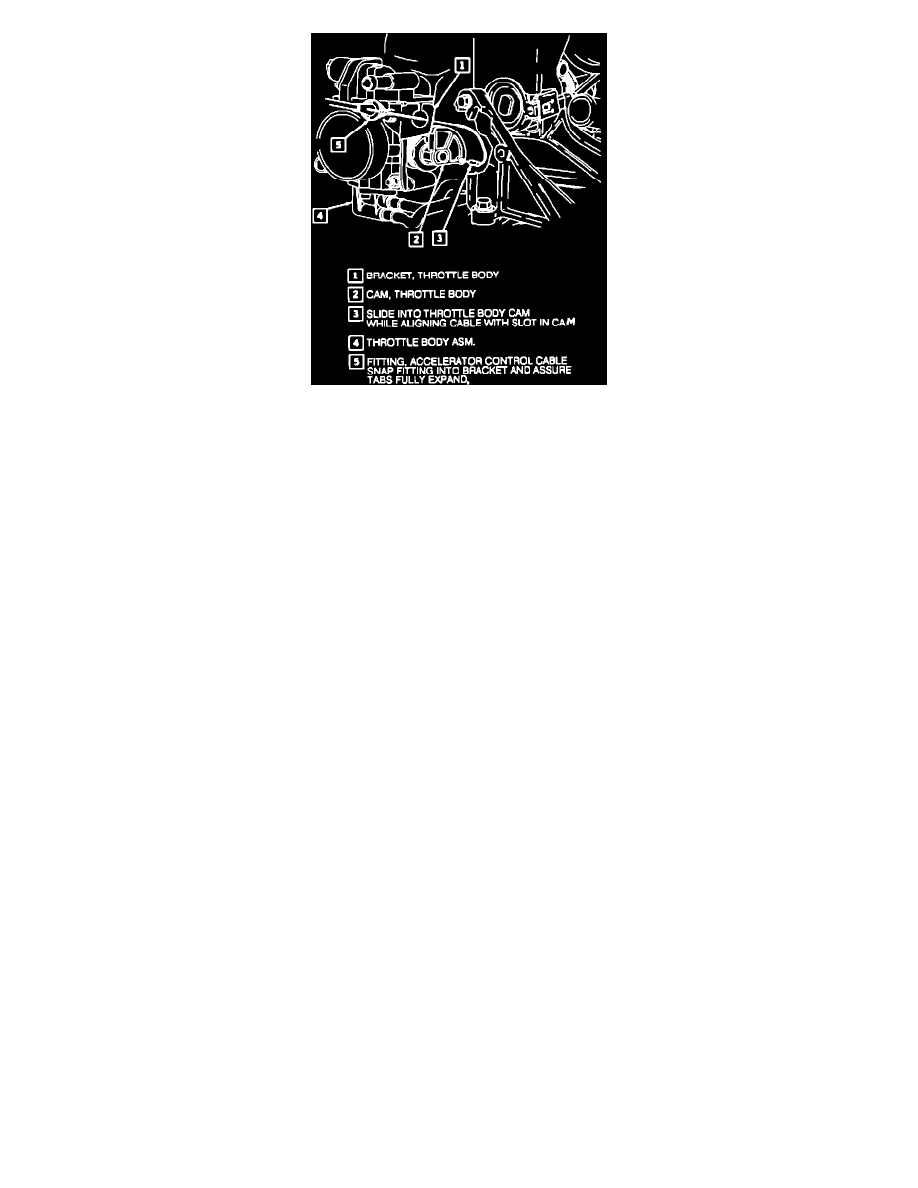

Accelerator Control Cable To Throttle Body Bracket And Lever
NOTE: When performing service on the accelerator control cable, observe the following:
a. The retainer must be installed with the tang secured overhead of the stud.
b. The conduit fitting at both ends of the cable must have locking tangs expanded and locked in the attaching holes.
c. The braided portion of the accelerator cable assembly must not come in contact with the front dash sealer during assembly, repair or replacement
of the assembly.
d. Flexible components (hoses, wires, conduits, etc.) must not be routed within 50 mm (2.0 inches) of moving parts of the accelerator linkage
outboard support unless routing is positively controlled.
